2-2158100-2 - TE Connectivity

Description: TE CONNECTIVITY / SCHRACK - 2-2158100-2 - RELAY, SPDT, 12VDC, 16A, THD

Download 2-2158100-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

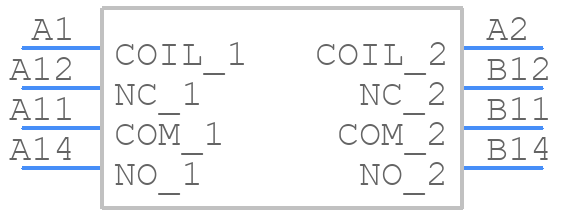

Symbol
2-2158100-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2-2158100-2 - TE Connectivity PCB footprint - Other - Other - 2-2158100-2-2
click to zoom
3D Models
2-2158100-2 - TE Connectivity - 3D model - Other - 2-2158100-2-2
click to zoom

2-2158100-2 Details

  • Manufacturer Part Number:

    2-2158100-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.75

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Power:

    530 mW

  • Coil Resistance:

    270 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Contact Current(AC)-Max:

    16 A

  • Contact Current(DC)-Max:

    16 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact Voltage(DC)-Max:

    300 V

  • End Contact Material:

    SILVER NICKEL

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    70 °C

  • Packing Method:

    BOX; TUBE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

2-2158100-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 2-2158100-2 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • Yes, the 2-2158100-2 connector has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The maximum operating temperature range for the 2-2158100-2 connector is -40°C to 125°C (-40°F to 257°F).
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with the use of adapters or specialized tooling. However, it's recommended to consult with TE Connectivity or a qualified engineer to ensure compatibility.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-2158100-2 Overview

Use the download button to access the 2-2158100-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-215, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
