2-2172089-2 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

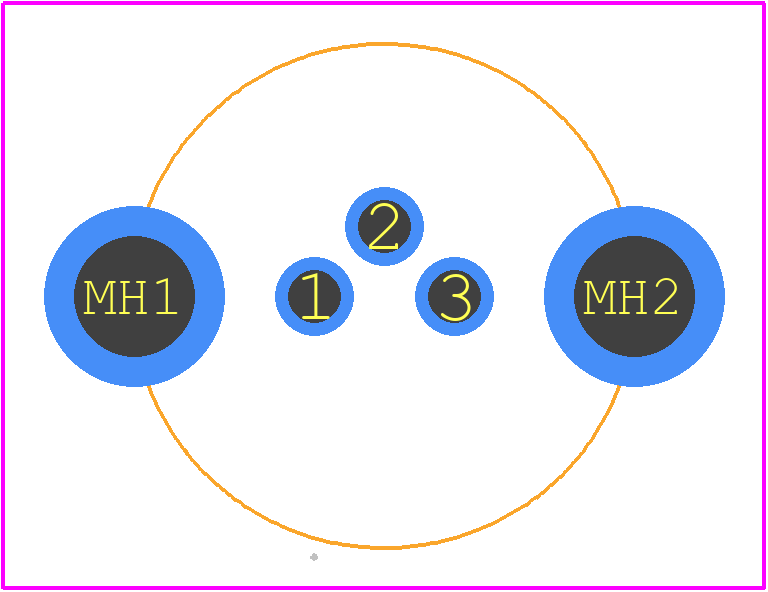

PCB Footprints

2-2172089-2 - TE Connectivity PCB footprint - Other - Other - 2-2172089-2-2

click to zoom

3D Models

2-2172089-2 - TE Connectivity - 3D model - Other - 2-2172089-2-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2-2172089-2
Part Number 2-2172089-2
Manufacturer TE Connectivity
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - 2-2172089-2-2
Released Date Feb 15, 2018
Last Modified Date Apr 18, 2025 4:08 AM UTC
Pinout / Pin List Click Here (Member Only)

2-2172089-2 Details

Manufacturer Part Number:
2-2172089-2
Brand Name:
TE Connectivity
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Factory Lead Time:
41 Weeks, 5 Days
Manufacturer:
TE Connectivity
Body/Shell Style:
RECEPTACLE
Connector Type:
CIRCULAR CONNECTOR
Contact Design:
PREASSEM CONN
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT APPLICABLE
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
EMI Shielded:
YES
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
3A
Mixed Contacts:
NO
Mounting Type:
PANEL
Number Of Connectors:
ONE
Number of Ports:
1
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization:
A
Polarization Key:
POLARIZED
Rated Current (Signal):
3 A
Shell Finish:
NICKEL
Shell Material:
ZINC ALLOY
Shell Size:
12
Total Number of Contacts:
3

2-2172089-2 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
Yes, the 2-2172089-2 connector is designed to withstand high-vibration environments. It has a ruggedized design and meets the requirements of IEC 61373 Cat 2, which ensures reliable performance in vibration-prone applications.
The 2-2172089-2 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance and longevity.
The 2-2172089-2 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.
Yes, the 2-2172089-2 connector is part of TE Connectivity's modular connector family and is designed to be compatible with other products in the same family. This allows for easy integration and flexibility in design.
