Technical Content
Part Image

2-2178710-0 - TE Connectivity

Description: AMP - TE CONNECTIVITY - 2-2178710-0 - CONNECTOR, RCPT, 20POS, 2ROW, 1.27MM

Download 2-2178710-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-2178710-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

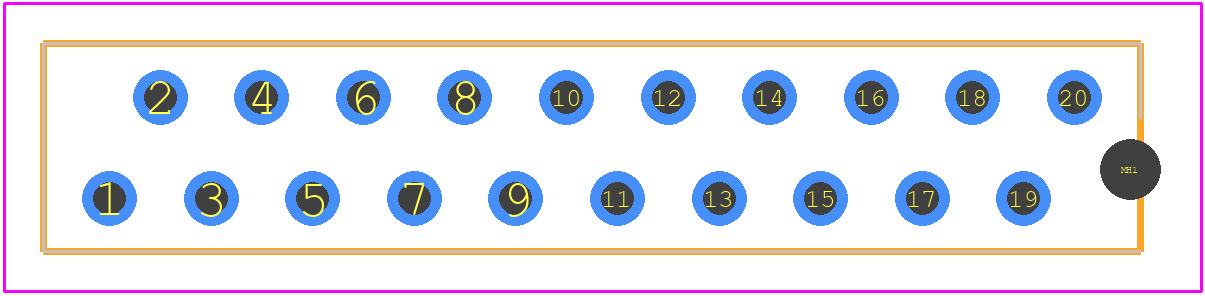

2-2178710-0 - TE Connectivity PCB footprint - Other - Other - 2-2178710-0-2
click to zoom
3D Models
2-2178710-0 - TE Connectivity - 3D model - Other - 2-2178710-0-2
click to zoom

2-2178710-0 Details

  • Manufacturer Part Number:

    2-2178710-0

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Board Mounting Option:

    HOLE .055-.063

  • Body Breadth:

    0.205 inch

  • Body Depth:

    0.157 inch

  • Body Length:

    1.079 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SN ON NI

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    8 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    5.7824 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Length:

    0.122 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • Withdrawl Force-Min:

    .8896 N

2-2178710-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-2178710-0 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 2-2178710-0 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not fully sealed against moisture. For outdoor use, it's recommended to use additional sealing or protective measures to ensure the connector remains reliable.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate other wire sizes with some limitations. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 2-2178710-0 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its reliability and performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-2178710-0 Overview

Use the download button to access the 2-2178710-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-217, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
