Part Image

2-2301994-3 - TE Connectivity

Description: Body Features: Modular Jack Latch Orientation Standard - Latch Down | Shield Material Brass | Shield Plating Material Nickel | PCB Retention Feature Material LCP | LED Color (Top Left) None | PCB Ground Tab Location .12 INCH | Shield Plating Finish Matte | LED Color (Bottom Right) Yellow | Insulator Material LCP | LED Color (Bottom Left) Green | PCB Ground Tab Location 3.05 MM | Connector Profile Standard | LED Color (Top Right) None | Configuration Features: Panel Ground Location Top and Side | Number of P

Download 2-2301994-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

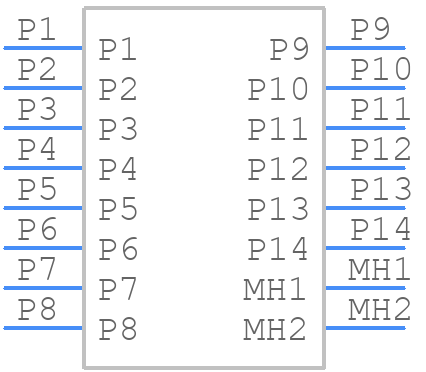

Symbol
2-2301994-3 - TE Connectivity - PCB symbol
click to zoom

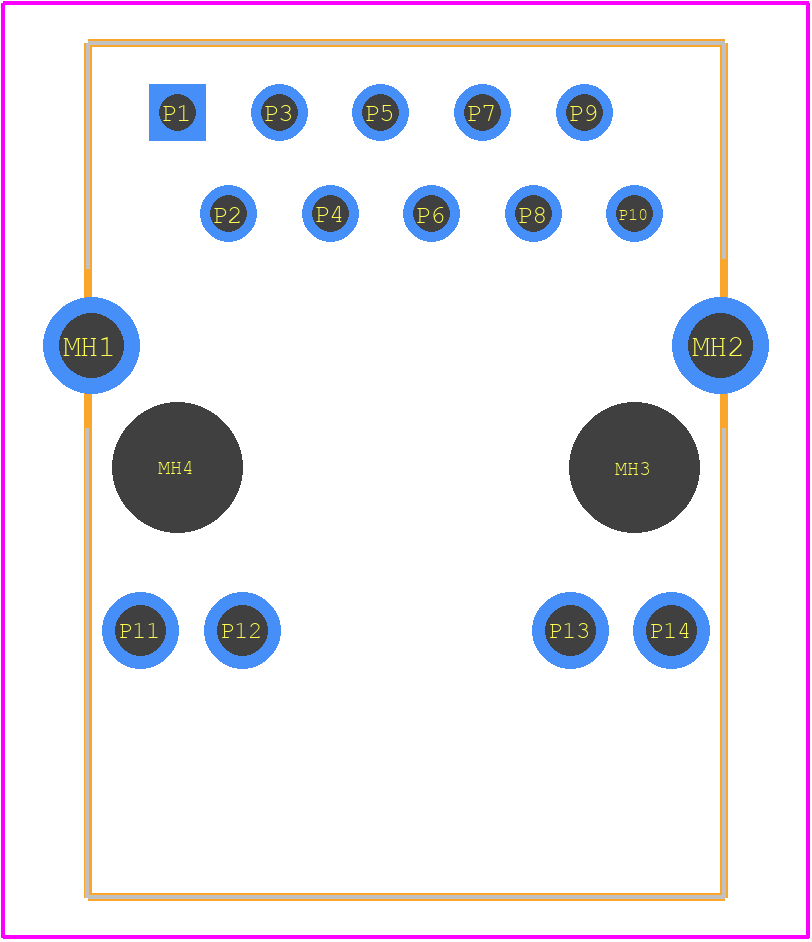

PCB Footprints
2-2301994-3 - TE Connectivity PCB footprint - Other - Other - 2-2301994-3-2
click to zoom
3D Models
2-2301994-3 - TE Connectivity - 3D model - Other - 2-2301994-3-2
click to zoom

2-2301994-3 Details

  • Manufacturer Part Number:

    2-2301994-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Board Mounting Option:

    BOARD LOCK

  • Body Depth:

    0.543 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

2-2301994-3 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-2301994-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 2-2301994-3 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and performance.
  • The 2-2301994-3 connector has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 connect and disconnect cycles without compromising its performance or reliability.
  • Yes, the 2-2301994-3 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in applications that require environmental compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-2301994-3 Overview

Use the download button to access the 2-2301994-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-230, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
