2-2324245-8 - TE Connectivity

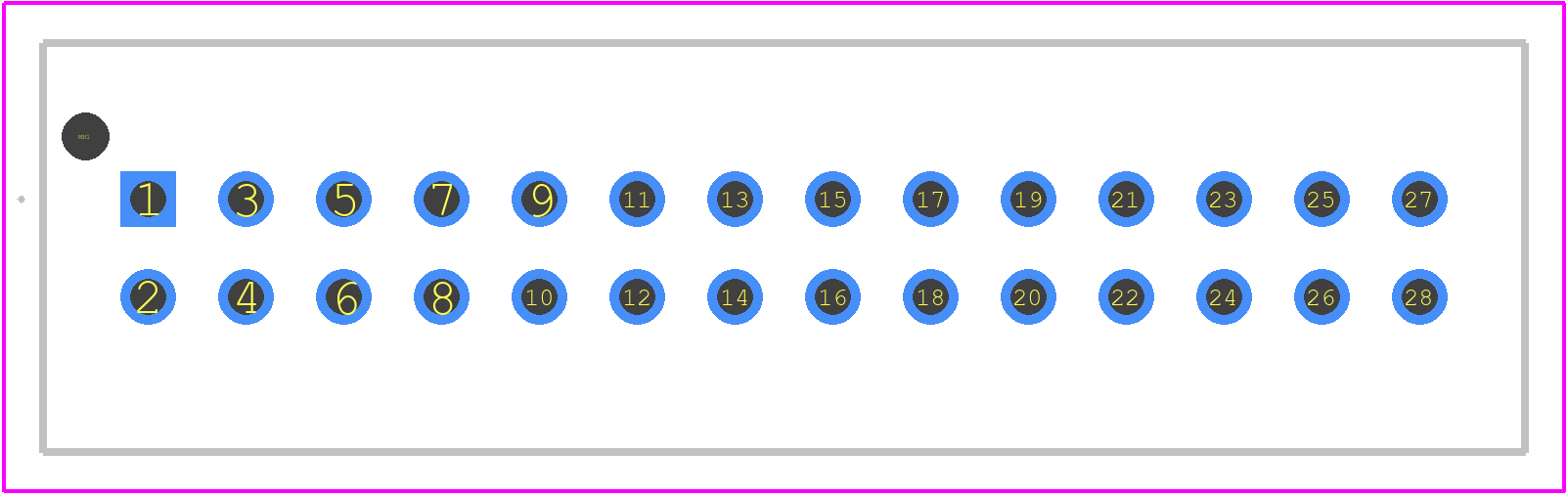

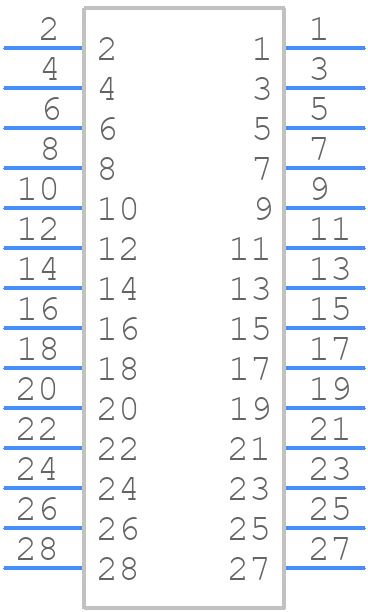

2-2324245-8 Details

• Manufacturer Part Number:

  2-2324245-8

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Board Mounting Option:

  PEG

• Body Breadth:

  0.412 inch

• Body Depth:

  0.386 inch

• Body Length:

  1.492 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  15 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  8.9 N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYAMIDE

• MIL Conformance:

  NO

• Mains Connector Rating:

  4.2A

• Mating Contact Pitch:

  0.098 inch

• Mating Contact Row Spacing:

  0.098 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  LATCHING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.5 mm

• Panel Mount:

  NO

• Plating Thickness:

  78.74u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  4.2 A

• Reference Standard:

  UL; VDE

• Terminal Length:

  0.134 inch

• Terminal Pitch:

  2.5 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  28

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.9 N
