2-2331102-1 - TE Connectivity

Description: Body Features: Primary Product Color Gray | Connector & Keying Code B | Configuration Features: PCB Mount Orientation Vertical | Number of Positions 46 | Number of Rows 3 | Contact Features: Contact Size 1.5mm | Mating Tab Width 1.5 MM | Contact Current Rating (Max) 23 AMP | Contact Mating Area Plating Material Silver | Mating Tab Thickness .64 MM | Contact Type Tab | Housing Features: Centerline (Pitch) 4 MM | Mechanical Attachment: Mating Alignment With | Connector Mounting Type Board Mount | Operation/Ap

Download 2-2331102-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

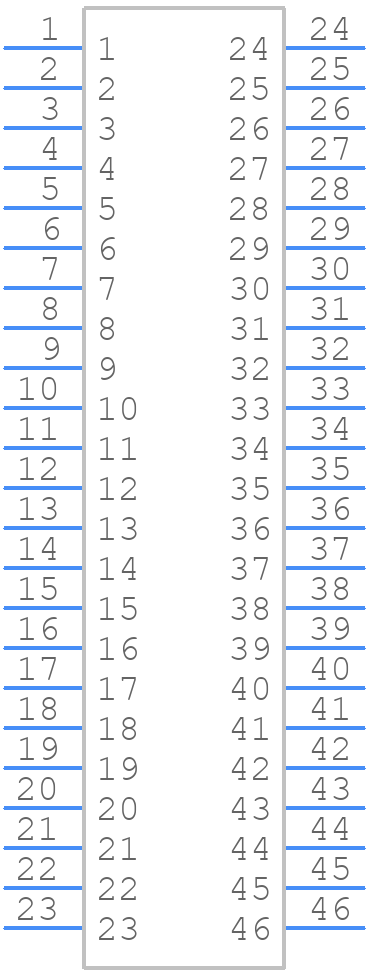

2-2331102-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

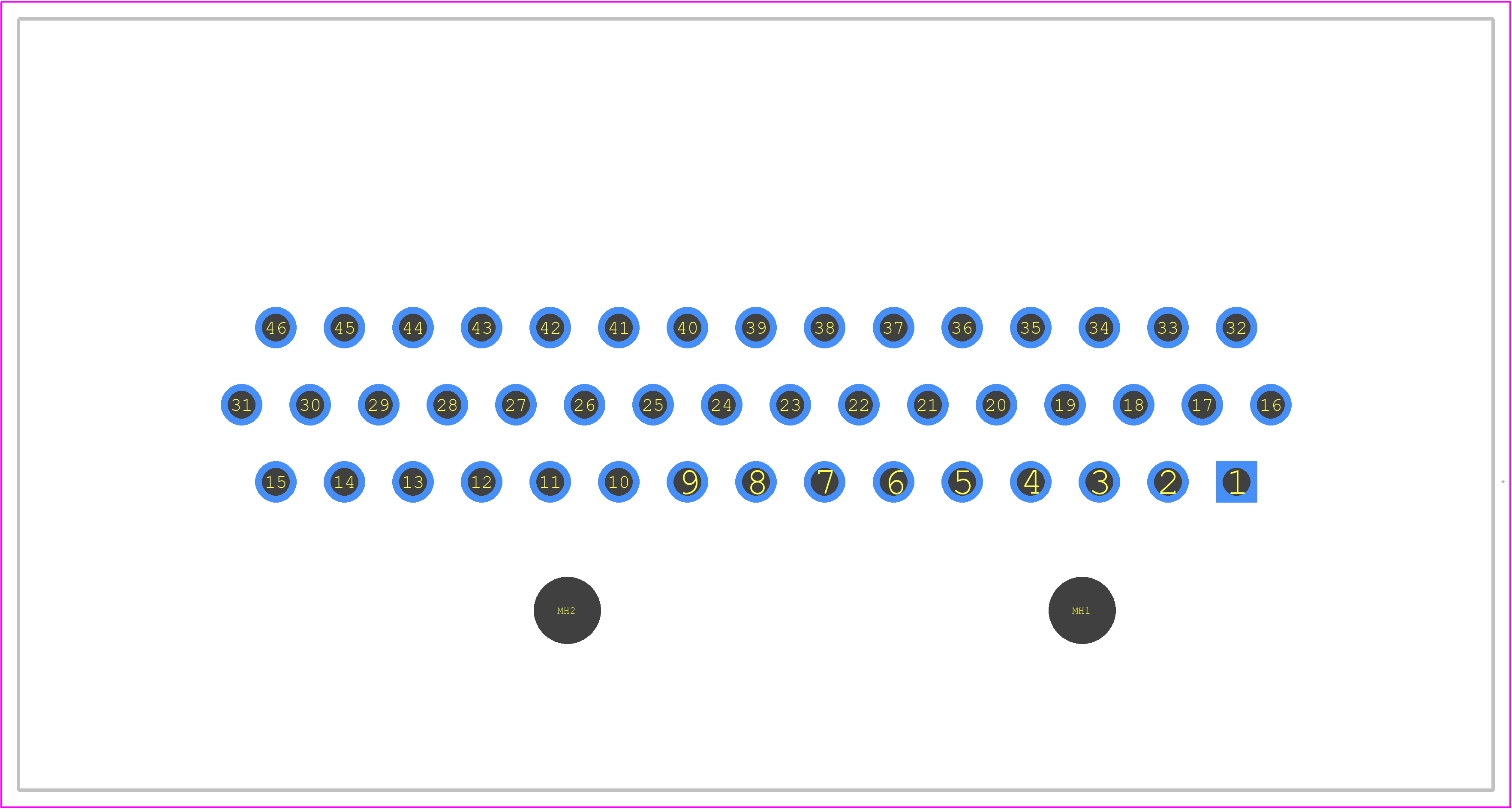

2-2331102-1 - TE Connectivity PCB footprint - Other - Other - 2-2331102-1-2
click to zoom
3D Models
2-2331102-1 - TE Connectivity - 3D model - Other - 2-2331102-1-2
click to zoom

2-2331102-1 Details

  • Manufacturer Part Number:

    2-2331102-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    29 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    23A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    23 A

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    21

2-2331102-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 2-2331102-1 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6, making it suitable for high-vibration applications.
  • Yes, the 2-2331102-1 connector has a rating of IP67, which means it is protected against dust and water immersion up to 1 meter for 30 minutes, making it suitable for outdoor use.
  • The operating temperature range for the 2-2331102-1 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with the use of adapters or by consulting with TE Connectivity's technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-2331102-1 Overview

Use the download button to access the 2-2331102-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-233, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
