2-2822979-4 - TE Connectivity

Description: Body Features: Frame Style Square | Configuration Features: Number of Positions 3647 | Grid Spacing .9906 x .8585 MM | Grid Spacing .039 x .0338 INCH | Contact Features: Contact Mating Area Plating Material Thickness 30 MICIN | Contact Base Material Copper Alloy | Contact Current Rating (Max) .5 AMP | Contact Mating Area Plating Material Gold | IC Socket Type LGA 3647 | Housing Features: Housing Color Black | Centerline (Pitch) .99 MM | Centerline (Pitch) .86 MM | Centerline (Pitch) .034 INCH | Centerline (

Download 2-2822979-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-2822979-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

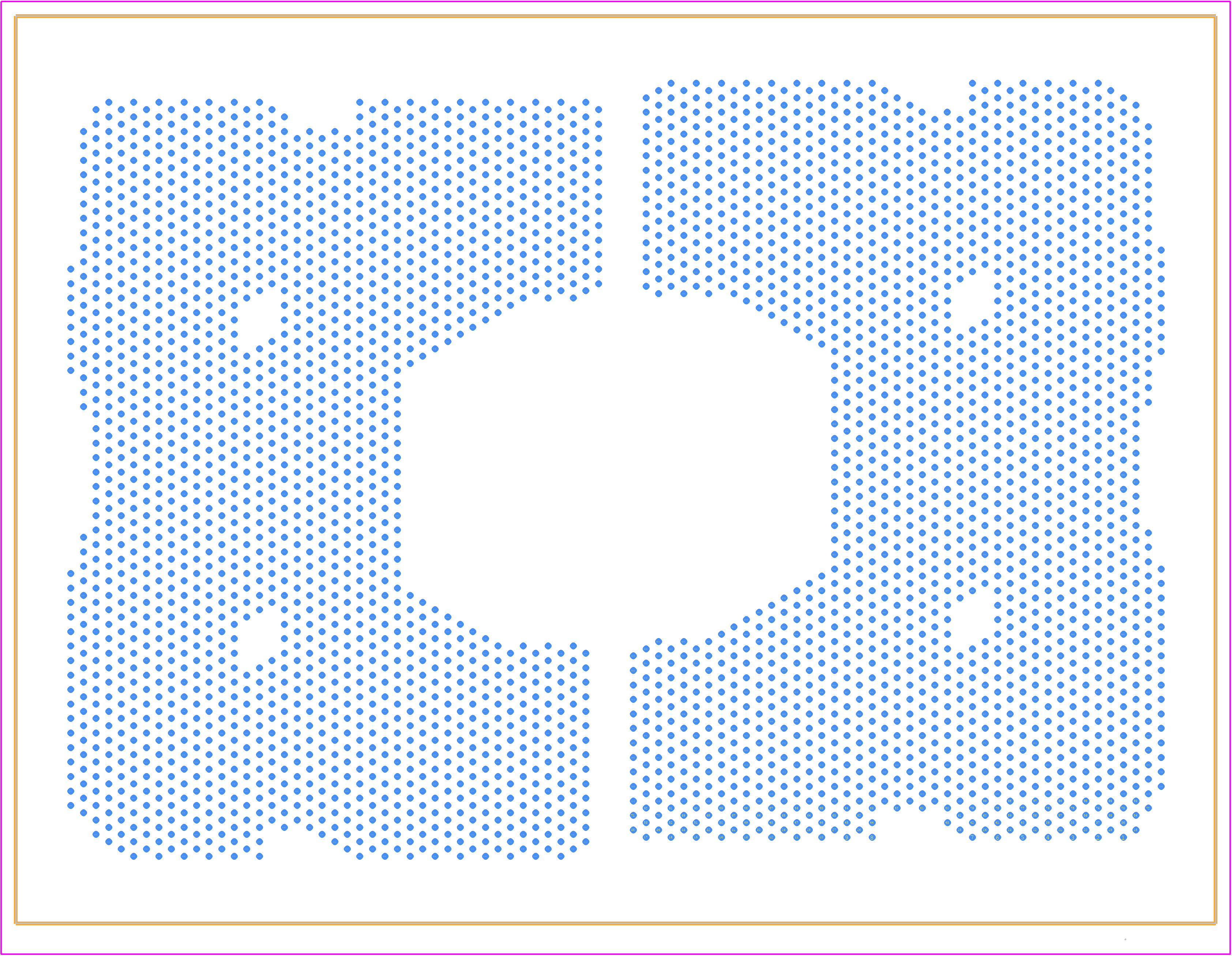

2-2822979-4 - TE Connectivity PCB footprint - Other - Other - 2-2822979-3
click to zoom
3D Models
2-2822979-4 - TE Connectivity - 3D model - Other - 2-2822979-3
click to zoom

2-2822979-4 Details

  • Manufacturer Part Number:

    2-2822979-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Current Rating:

    0.5 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    LGA3647

  • Housing Material:

    POLYETHYLENE

  • Mating Contact Pitch:

    0.039 inch

  • Number of Contacts:

    3647

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Termination Type:

    SURFACE MOUNT

2-2822979-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-2822979-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 2-2822979-4 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using it in outdoor environments to maintain its performance and reliability.
  • While the datasheet specifies AWG 24-20 wire sizes, it's possible to use this connector with other wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to ensure the connector's performance and reliability are not compromised.
  • The 2-2822979-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-2822979-4 Overview

Use the download button to access the 2-2822979-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-282, or try a keyword search, such as Sockets and Chip Carriers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
