2-292138-8 - TE Connectivity

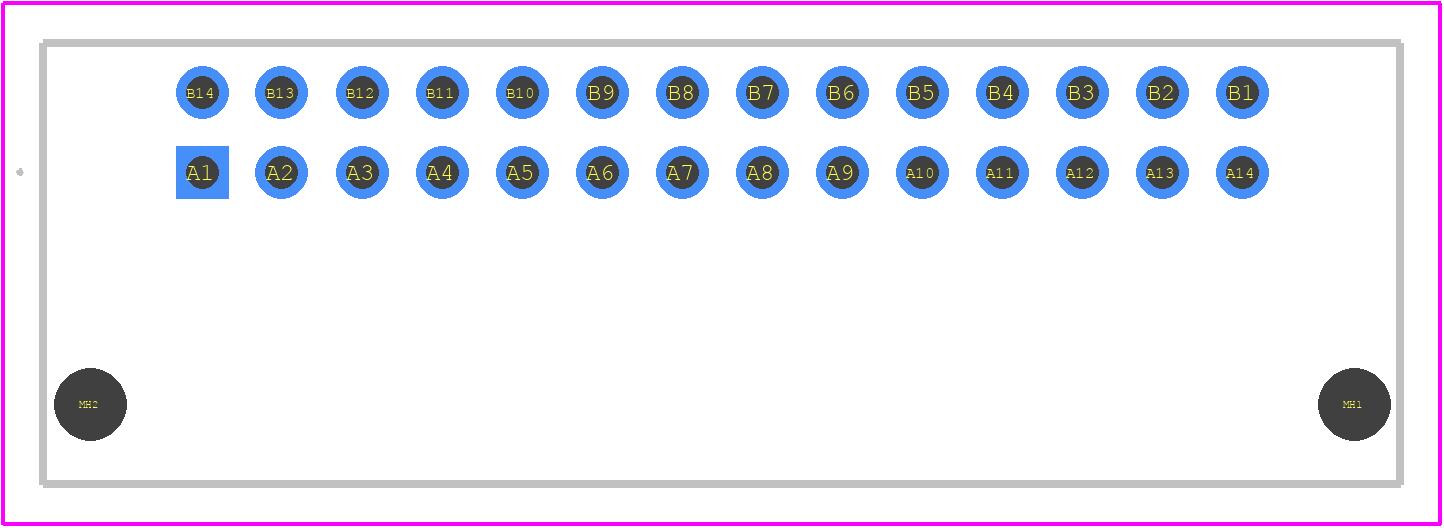

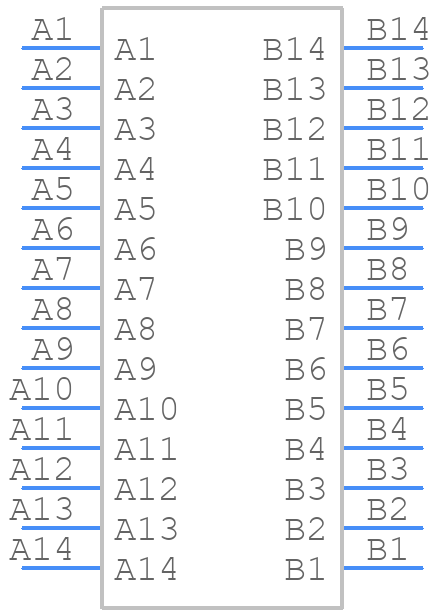

2-292138-8 Details

• Manufacturer Part Number:

  2-292138-8

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  TE Connectivity

• YTEOL:

  8

• Additional Feature:

  ROHS COMPLIANT

• Board Mounting Option:

  BOARD LOCK

• Body Breadth:

  0.437 inch

• Body Depth:

  0.433 inch

• Body Length:

  1.334 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Durability:

  30 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  4.8928 N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYAMIDE66

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mains Connector Rating:

  4A

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.256 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  221 °C

• Operating Temperature-Min:

  -22 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.0066 mm

• Panel Mount:

  NO

• Plating Thickness:

  39.37u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  4 A

• Rated Voltage:

  125 V

• Reference Standard:

  CSA, LR, U

• Terminal Length:

  0.126 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  28

• UL Flammability Code:

  94V-0

• Wire Size-Max:

  22 AWG

• Wire Size-Min:

  28 AWG

• Withdrawl Force-Min:

  .8062 N
