2-316131-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Positions 6 | PCB Mount Orientation Horizontal | Number of Rows 1 | Contact Features: Contact Mating Area Plating Material Thickness .38 MICM | Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thickness 15 MICIN | Contact Current Rating (Max) 15 AMP | Contact Type Pin | Housing Features: Centerline (Pitch) 5.08 MM | Centerline (Pitch) .2 INCH | Housing Material Polyester GF | Industry Standards: UL

Download 2-316131-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-316131-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

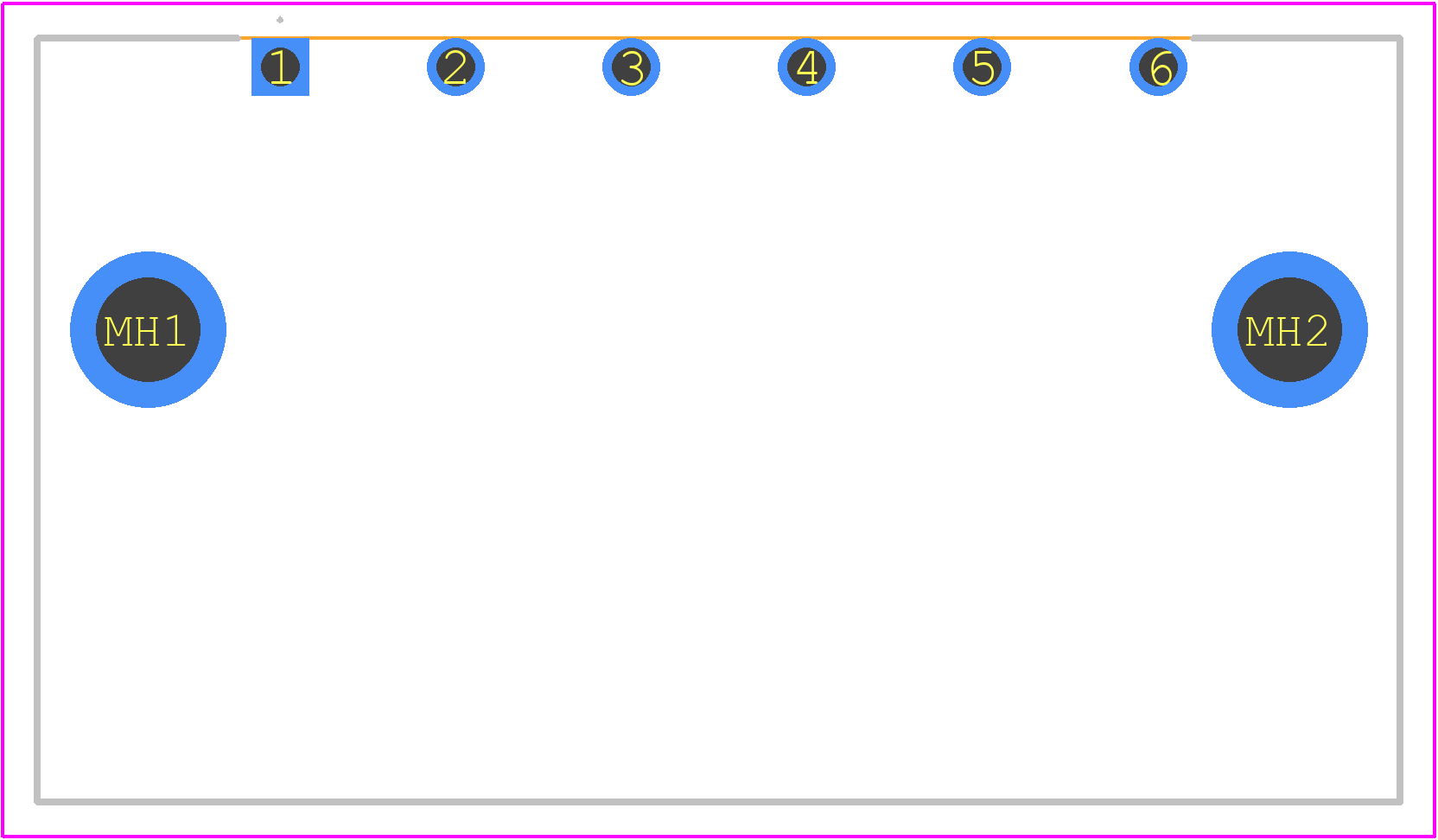

2-316131-2 - TE Connectivity PCB footprint - Other - Other - 2-316131-2-2
click to zoom
3D Models
2-316131-2 - TE Connectivity - 3D model - Other - 2-316131-2-2
click to zoom

2-316131-2 Details

  • Manufacturer Part Number:

    2-316131-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.42

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-316131-2 Overview

Use the download button to access the 2-316131-2 schematic symbol, PCB footprint, and 3D model.
