2-338069-4 - TE Connectivity

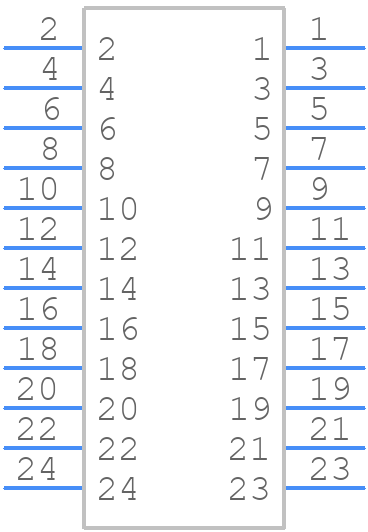

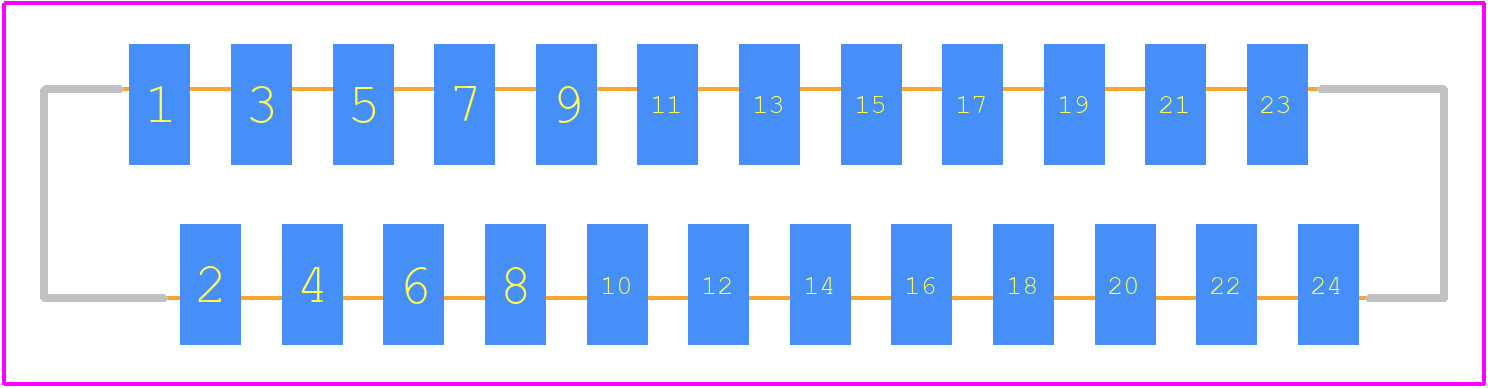

2-338069-4 Details

• Manufacturer Part Number:

  2-338069-4

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  TE Connectivity

• YTEOL:

  9.4

• Additional Feature:

  STAGGERED CONFIGURATION

• Body Breadth:

  0.205 inch

• Body Depth:

  0.27 inch

• Body Length:

  1.377 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Durability:

  20 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  4.8928 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  RED

• Insulator Material:

  POLYAMIDE46

• MIL Conformance:

  NO

• Mains Connector Rating:

  1.5A

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.059 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  FRICTION LOCK

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  4.4958 mm

• Panel Mount:

  NO

• Plating Thickness:

  196.85u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  1.5 A

• Rated Voltage:

  100 V

• Reference Standard:

  UL

• Terminal Length:

  0.208 inch

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  24

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  1.0008 N
