2-5178238-1 - TE Connectivity

2-5178238-1 Details

• Manufacturer Part Number:

  2-5178238-1

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LEAD FREE

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  6 Weeks, 5 Days

• Manufacturer:

  TE Connectivity

• Additional Feature:

  ROHS, ELV COMPLIANT

• Body Breadth:

  0.37 inch

• Body Depth:

  0.458 inch

• Body Length:

  1.163 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  25 mΩ

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  500VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .7228 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.085 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  M2.6X0.45

• Mounting Option 2:

  SCREW

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

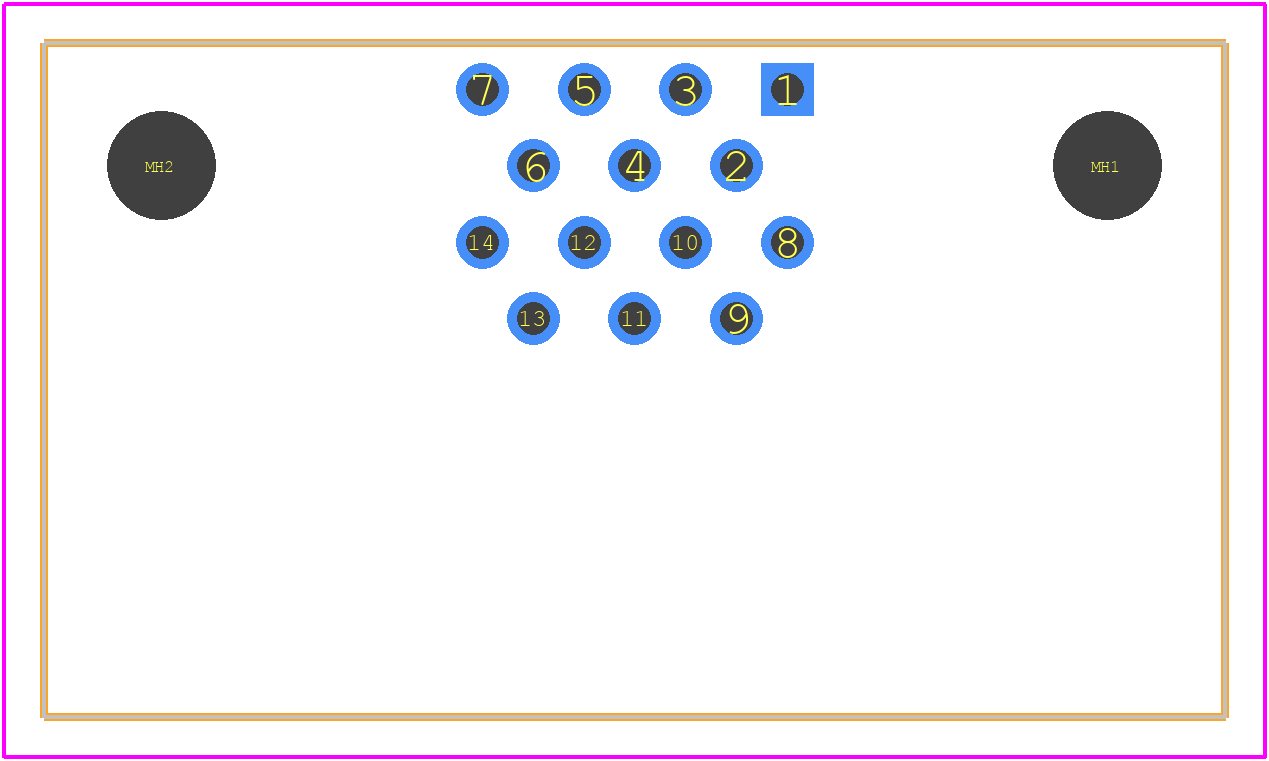

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.905 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Terminal Length:

  0.122 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  14

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .1946 N
