2-5179230-8 - TE Connectivity

Description: 0.8FH,P06H.5,160,08/Sn,TU,SC ,,,

Download 2-5179230-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-5179230-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

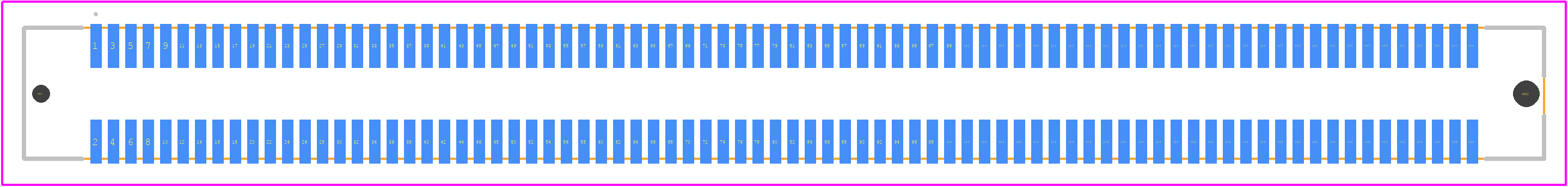

2-5179230-8 - TE Connectivity PCB footprint - Other - Other - 2-5179230-8-2
click to zoom
3D Models
2-5179230-8 - TE Connectivity - 3D model - Other - 2-5179230-8-2
click to zoom

2-5179230-8 Details

  • Manufacturer Part Number:

    2-5179230-8

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.68

  • Body Depth:

    0.236 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    2000000 Ω

  • Insulator Color:

    NATURAL

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    8u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    160

  • UL Flammability Code:

    94V-0

2-5179230-8 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-5179230-8 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 2-5179230-8 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not fully sealed against moisture. For outdoor use, it's recommended to use a connector with a higher IP rating, such as IP67 or IP69K, or to provide additional environmental protection.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate a range of wire sizes. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
  • The 2-5179230-8 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its electrical and mechanical performance.
