2-6437285-8 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Positions 26 | Number of Rows 4 | PCB Mount Orientation Horizontal | Number of Signal Positions 26 | Contact Features: Contact Mating Area Plating Material Gold | Mating Pin Diameter .039 INCH | Contact Size 1mm | Mating Pin Diameter 1 MM | Contact Type Pin | Dimensions: Connector Length 1.56 INCH | Connector Width 23 MM | Profile Height from PCB .843 INCH | Profile Height from PCB 21.4 MM | Connector Length 39.6 MM | Connector W

Download 2-6437285-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-6437285-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

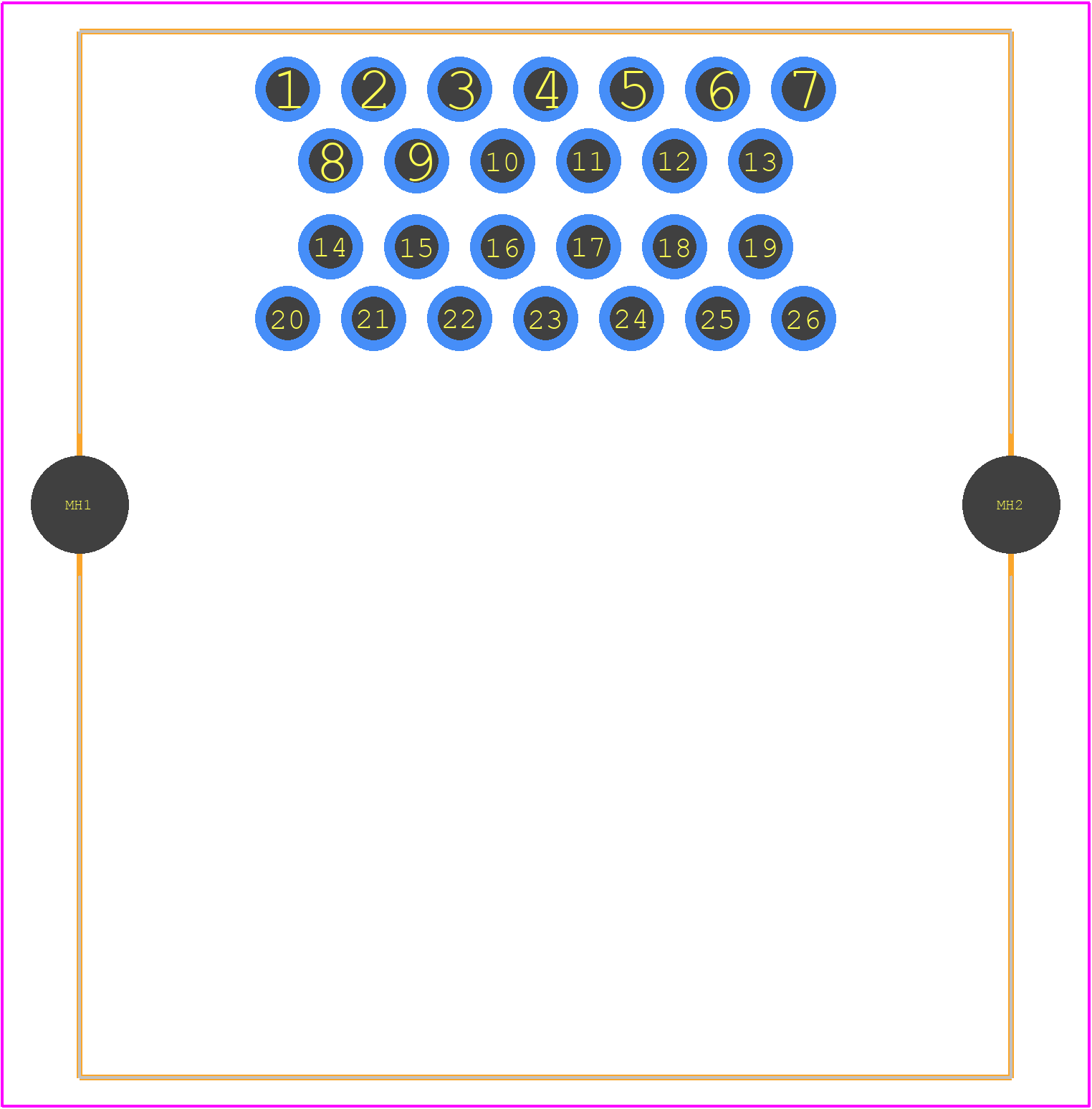

2-6437285-8 - TE Connectivity PCB footprint - Other - Other - 2-6437285-8-2
click to zoom
3D Models
2-6437285-8 - TE Connectivity - 3D model - Other - 2-6437285-8-2
click to zoom

2-6437285-8 Details

  • Manufacturer Part Number:

    2-6437285-8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

2-6437285-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-6437285-8 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 2-6437285-8 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using it in outdoor environments to maintain its performance and reliability.
  • The 2-6437285-8 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the 2-6437285-8 connector is designed for use with 24 AWG wire, it can accommodate wire sizes between 20 AWG and 26 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-6437285-8 Overview

Use the download button to access the 2-6437285-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-643, or try a keyword search, such as Combination Line Connectors
