Part Image

2-6437285-9 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Signal Positions 26 | PCB Mount Orientation Horizontal | Number of Positions 26 | Number of Rows 4 | Contact Features: Contact Type Pin | Mating Pin Diameter .039 INCH | Contact Size 1mm | Contact Mating Area Plating Material Gold | Mating Pin Diameter 1 MM | Dimensions: Connector Length 1.56 INCH | Connector Length 39.6 MM | Connector Width 23 MM | Connector Width .906 INCH | Profile Height from PCB 21.4 MM | Profile Height from

Download 2-6437285-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-6437285-9 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

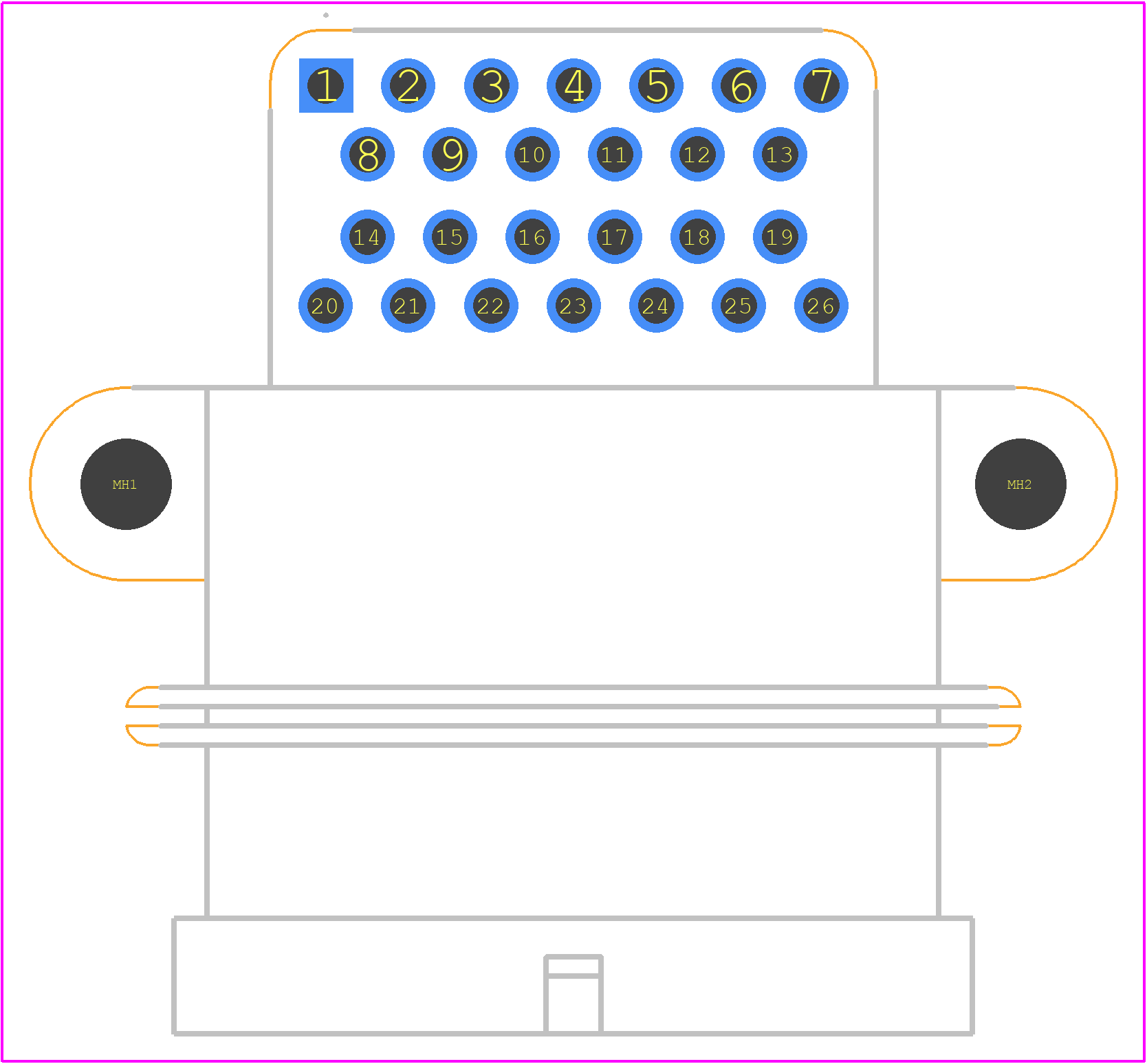

2-6437285-9 - TE Connectivity PCB footprint - Other - Other - 2-6437285-9-5
click to zoom
3D Models
2-6437285-9 - TE Connectivity - 3D model - Other - 2-6437285-9-5
click to zoom

2-6437285-9 Details

  • Manufacturer Part Number:

    2-6437285-9

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

2-6437285-9 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-6437285-9 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B standard for vibration resistance, making it suitable for use in applications with high vibration levels.
  • The 2-6437285-9 connector has a rating of IP67, which means it provides protection against solid objects and water immersion up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor environments.
  • The 2-6437285-9 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the 2-6437285-9 connector is designed for use with 24 AWG wire, it can accommodate wire sizes between 20 AWG and 26 AWG. However, it's essential to consult the datasheet and follow the manufacturer's guidelines for wire size and termination to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-6437285-9 Overview

Use the download button to access the 2-6437285-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-643, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
