2-6450830-8 - TE Connectivity

Description: Configuration Features: Number of Signal Positions 20 | Number of Rows 4 | PCB Mount Orientation Right Angle | Number of Positions 24 | Number of Power Positions 4 | Contact Features: Contact Underplating Material Thickness 50 MICIN | Contact Mating Area Plating Material Thickness 3 MICIN | Contact Underplating Material Thickness 2.87 MICM | Contact Mating Area Plating Material Gold Flash over Palladium Nickel | Contact Type Blade | Contact Underplating Material Nickel | Contact Type Pin | Power Contact Bas

Download 2-6450830-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-6450830-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

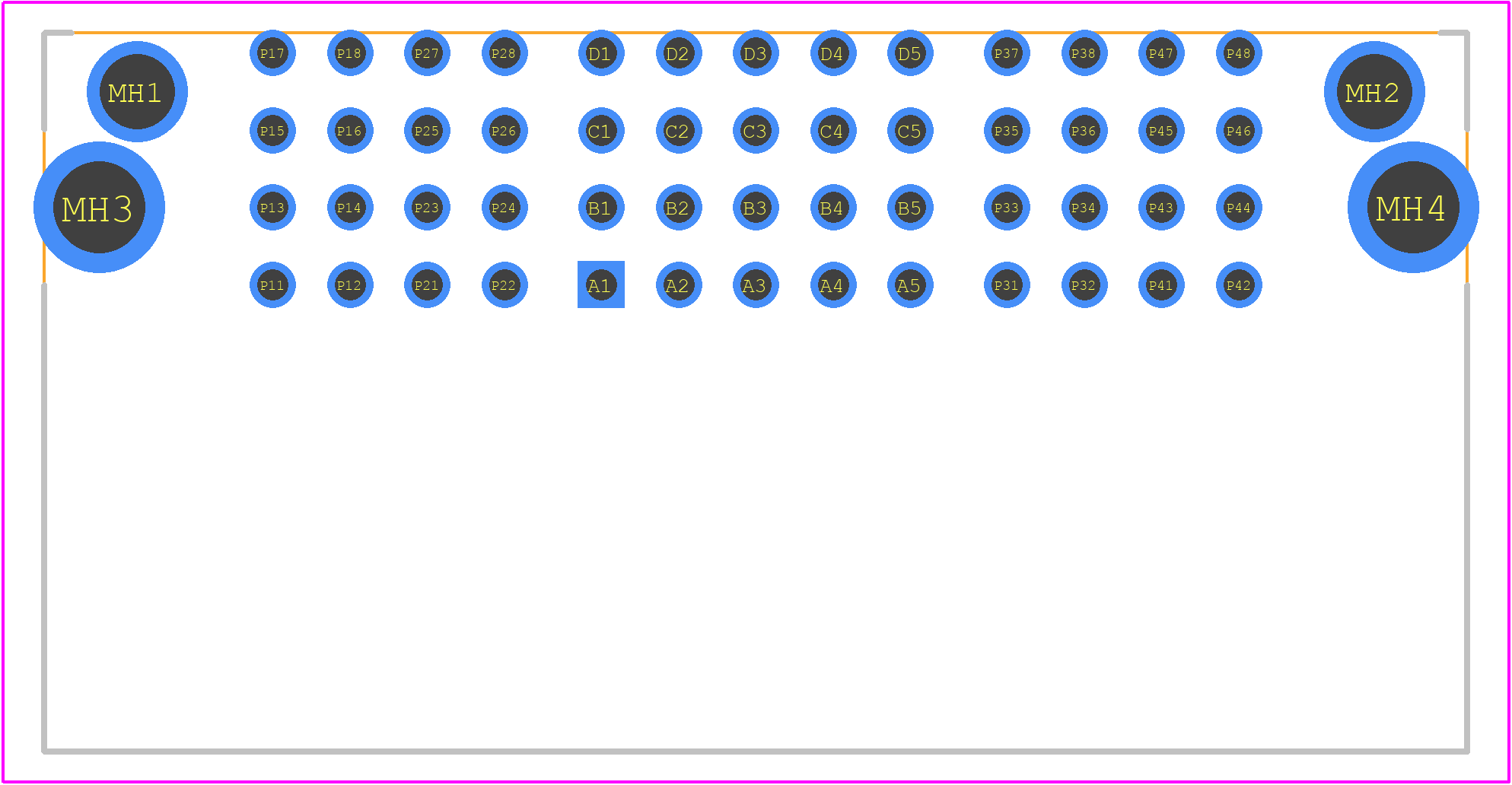

2-6450830-8 - TE Connectivity PCB footprint - Other - Other - 2-6450830-8-2
click to zoom
3D Models
2-6450830-8 - TE Connectivity - 3D model - Other - 2-6450830-8-2
click to zoom

2-6450830-8 Details

  • Manufacturer Part Number:

    2-6450830-8

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S20P4

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    50A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    YES

  • Mounting Option 2:

    BOARDLOCK

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    3u inch

  • Rated Current (Signal):

    50 A

  • Rated Voltage:

    60 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.113 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

2-6450830-8 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-6450830-8 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 2-6450830-8 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
  • The 2-6450830-8 connector is designed to meet IP67 standards, which means it can withstand temporary immersion in water and exposure to certain chemicals. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the connector's suitability for your specific environmental requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-6450830-8 Overview

Use the download button to access the 2-6450830-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-645, or try a keyword search, such as Headers and Edge Type Connectors
