2-6450869-7 - TE Connectivity

Description: Conn Board to Board RCP 15Power/12Signal POS 7.1mm/5.08mm/2.54mm Press Fit ST Top Entry Thru-Hole

Download 2-6450869-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2-6450869-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

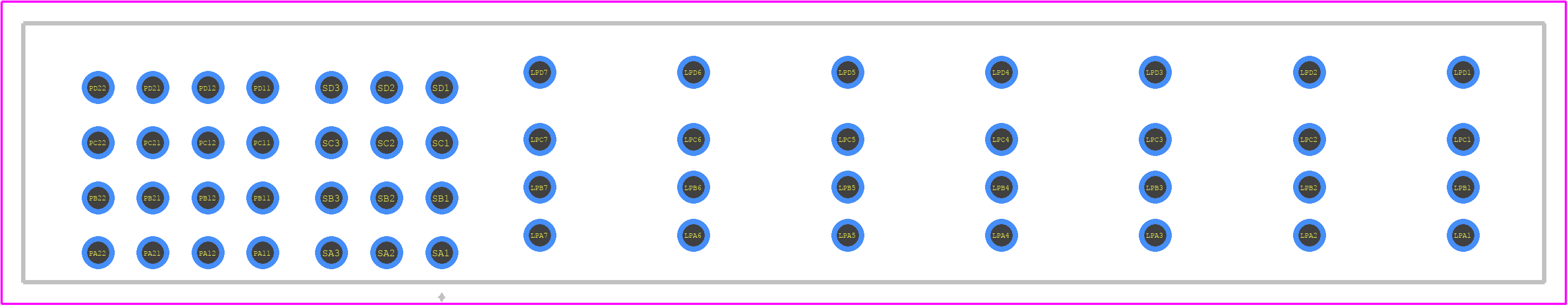

2-6450869-7 - TE Connectivity PCB footprint - Other - Other - 2-6450869-7-1
click to zoom
3D Models
2-6450869-7 - TE Connectivity - 3D model - Other - 2-6450869-7-1
click to zoom

2-6450869-7 Details

  • Manufacturer Part Number:

    2-6450869-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.85

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM

  • Body Breadth:

    0.47 inch

  • Body Depth:

    0.5 inch

  • Body Length:

    2.735 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S12P15

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    HYBRID

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Rated Current (Power):

    42 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.135 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    27

  • UL Flammability Code:

    94V-0

2-6450869-7 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-6450869-7 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as industrial machinery, transportation, and more.
  • The 2-6450869-7 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using it in outdoor environments.
  • The 2-6450869-7 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to ensure the connector is compatible with the desired wire size and to determine any necessary modifications or adjustments.
