2-827064-0 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

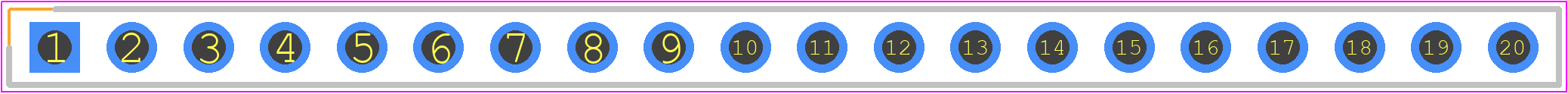

2-827064-0 - TE Connectivity PCB footprint - Header, Vertical - Header, Vertical - 2-827064-0_11

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2-827064-0
Part Number 2-827064-0
Manufacturer TE Connectivity
Pin Count 20
Part Category Link (Jumper)
Package Category Header, Vertical
Footprint Name Header, Vertical - 2-827064-0_11
Released Date Dec 7, 2018
Last Modified Date Dec 15, 2024 10:00 PM UTC
Pinout / Pin List Click Here (Member Only)

2-827064-0 Details

Manufacturer Part Number:
2-827064-0
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
9.1
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
5000000000 Ω
Insulator Color:
GREEN
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mains Connector Rating:
5A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
98.42u inch
Rated Current (Signal):
5 A
Reference Standard:
UL
Terminal Length:
0.125 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
20
UL Flammability Code:
94V-0

2-827064-0 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals of the 2-827064-0 connector is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 2-827064-0 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque to maintain reliable connections.
The 2-827064-0 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not fully sealed against moisture or water. While it can be used in outdoor applications, it's essential to take additional measures to protect the connector from environmental factors, such as using a protective enclosure or applying a conformal coating.
The 2-827064-0 connector is designed for use with wire sizes AWG 20-18, but it may be possible to use it with other wire sizes. However, it's essential to verify the compatibility of the connector with the specific wire size and type to ensure reliable connections and prevent damage to the connector.
Yes, the 2-827064-0 connector made by TE Connectivity is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for use in the European Union and other regions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

2-827064-0 Overview

Use the download button to access the 2-827064-0 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 2-827, or try a keyword search, such as Headers and Edge Type Connectors
