2-84534-6 - TE Connectivity

2-84534-6 Details

• Manufacturer Part Number:

  2-84534-6

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LEAD FREE

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• Manufacturer:

  TE Connectivity

• YTEOL:

  6

• Additional Feature:

  STAGGERED CONFIGURATION

• Board Mounting Option:

  SOLDERABLE RETENTION CLIPS

• Body Breadth:

  0.189 inch

• Body Depth:

  0.307 inch

• Body Length:

  1.427 inch

• Cable Types:

  FFC, FPC

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  STAGGERED

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Durability:

  20 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  WHITE

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mains Connector Rating:

  1A

• Mating Contact Pitch:

  0.049 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

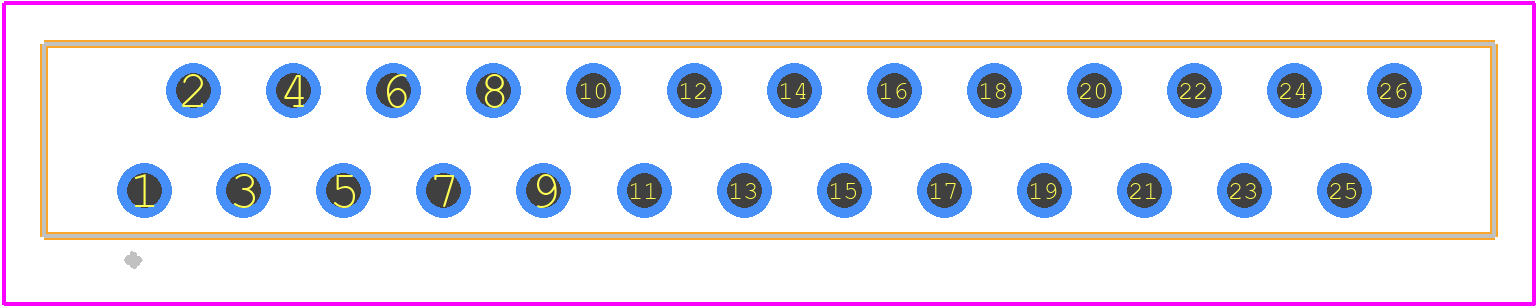

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.4892 mm

• Panel Mount:

  NO

• Plating Thickness:

  31.49u inch

• Rated Current (Signal):

  1 A

• Terminal Length:

  0.126 inch

• Terminal Pitch:

  1.25 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0
