2-84982-2 - TE Connectivity

Description: FPC Connectors, Flex-to-Board, 22 Position, .039 in [1 mm] Centerline, Non-ZIF, Vertical, Surface Mount, Height .22 in [5.6 mm]

Download 2-84982-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

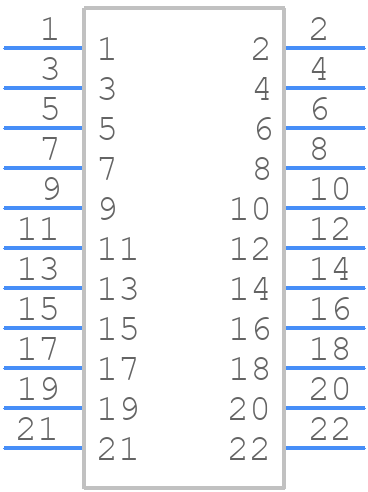

Symbol
2-84982-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
2-84982-2 - TE Connectivity PCB footprint - Other - Other - 2-84982-2-1
click to zoom
3D Models
2-84982-2 - TE Connectivity - 3D model - Other - 2-84982-2-1
click to zoom

2-84982-2 Details

  • Manufacturer Part Number:

    2-84982-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.65

  • Body Breadth:

    0.173 inch

  • Body Depth:

    0.22 inch

  • Body Length:

    0.945 inch

  • Cable Types:

    FFC, FPC

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    STAGGERED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.039 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    39.37u inch

  • Rated Current (Signal):

    1 A

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    22

2-84982-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2-84982-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 2-84982-2 connector has a rating of IP67, which means it provides protection against dust and water ingress. However, it's essential to ensure the connector is properly sealed and installed to maintain its environmental rating. Additionally, consider using additional protection measures, such as conformal coating or potting, for extreme outdoor environments.
  • While the datasheet recommends using AWG 20-24 wire, it's possible to use other wire sizes with the 2-84982-2 connector. However, you should ensure the wire size is compatible with the connector's terminal design and that the wire insulation is compatible with the connector's materials. Consult with TE Connectivity or a qualified engineer for guidance on using non-recommended wire sizes.
  • The 2-84982-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the temperature rating of the wire and other components in your system to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2-84982-2 Overview

Use the download button to access the 2-84982-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2-849, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
