2-84984-4 - TE Connectivity

2-84984-4 Details

• Manufacturer Part Number:

  2-84984-4

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LEAD FREE

• ECCN Code:

  EAR99

• Factory Lead Time:

  11 Weeks, 4 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  6.5

• Additional Feature:

  ROHS AND ELV COMPLIANT

• Board Mounting Option:

  SOLDERABLE RETENTION CLIPS

• Body Breadth:

  0.118 inch

• Body Depth:

  0.22 inch

• Body Length:

  1.024 inch

• Cable Types:

  FFC, FPC

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  30 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Durability:

  30 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  2.502 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  WHITE

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• MIL Conformance:

  NO

• Mains Connector Rating:

  1A

• Mating Contact Pitch:

  0.039 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Option:

  GENERAL PURPOSE

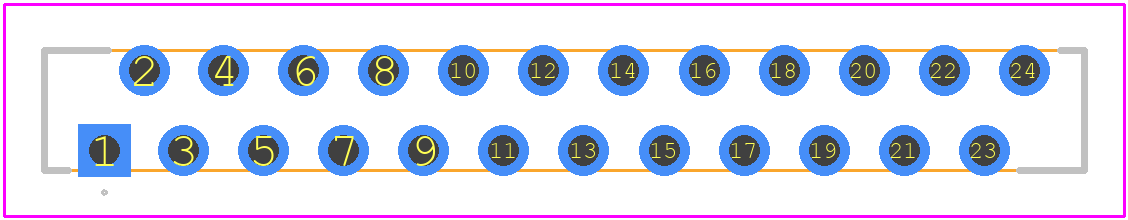

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.0066 mm

• Panel Mount:

  NO

• Plating Thickness:

  39.37u inch

• Rated Current (Signal):

  1 A

• Terminal Length:

  0.118 inch

• Terminal Pitch:

  1 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  24

• Withdrawl Force-Min:

  .199882 N
