Part Image

20-3518-10 - ARIES

Description: ARIES - 20-3518-10 - IC & Component Socket, 20 Contacts, DIP, 2.54 mm, 518 Series, 7.62 mm, Beryllium Copper

Download 20-3518-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

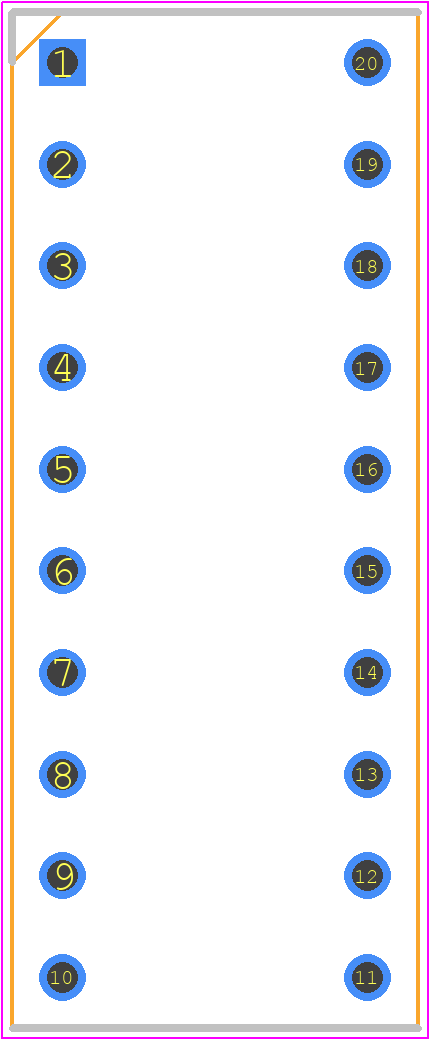

20-3518-10 - ARIES PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - SIL-20
click to zoom

20-3518-10 Details

  • Manufacturer Part Number:

    20-3518-10

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7.57

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.165 inch

  • Body Length:

    2 inch

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    BRASS

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP20

  • Housing Material:

    NYLON46

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    20

  • Operating Temperature-Max:

    105 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

20-3518-10 Overview

Use the download button to access the 20-3518-10 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 20-35, or try a keyword search, such as Sockets and Chip Carriers
