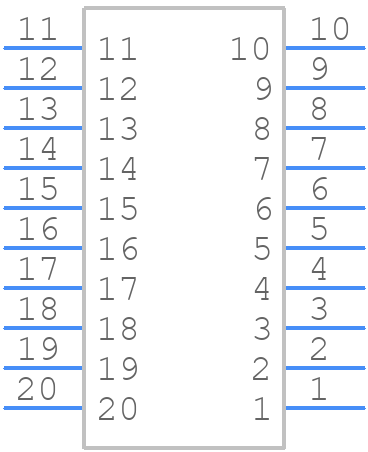

20-823-90 - ARIES

20-823-90 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 20-823-90 connector is designed to withstand high-vibration environments. However, it's crucial to ensure that the connector is properly secured and the screw terminals are tightened to the recommended torque to maintain reliable connections.
• Is the connector suitable for use in harsh environments, such as high temperatures or humidity?
  The 20-823-90 connector is rated for operating temperatures between -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 95% RH. However, it's essential to follow proper installation and sealing procedures to ensure the connector's performance in harsh environments.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the connector is designed for AWG 20-24 wires, it's possible to use it with other wire sizes. However, it's crucial to ensure that the wire size and insulation type are compatible with the connector's specifications to maintain reliable connections and prevent damage.

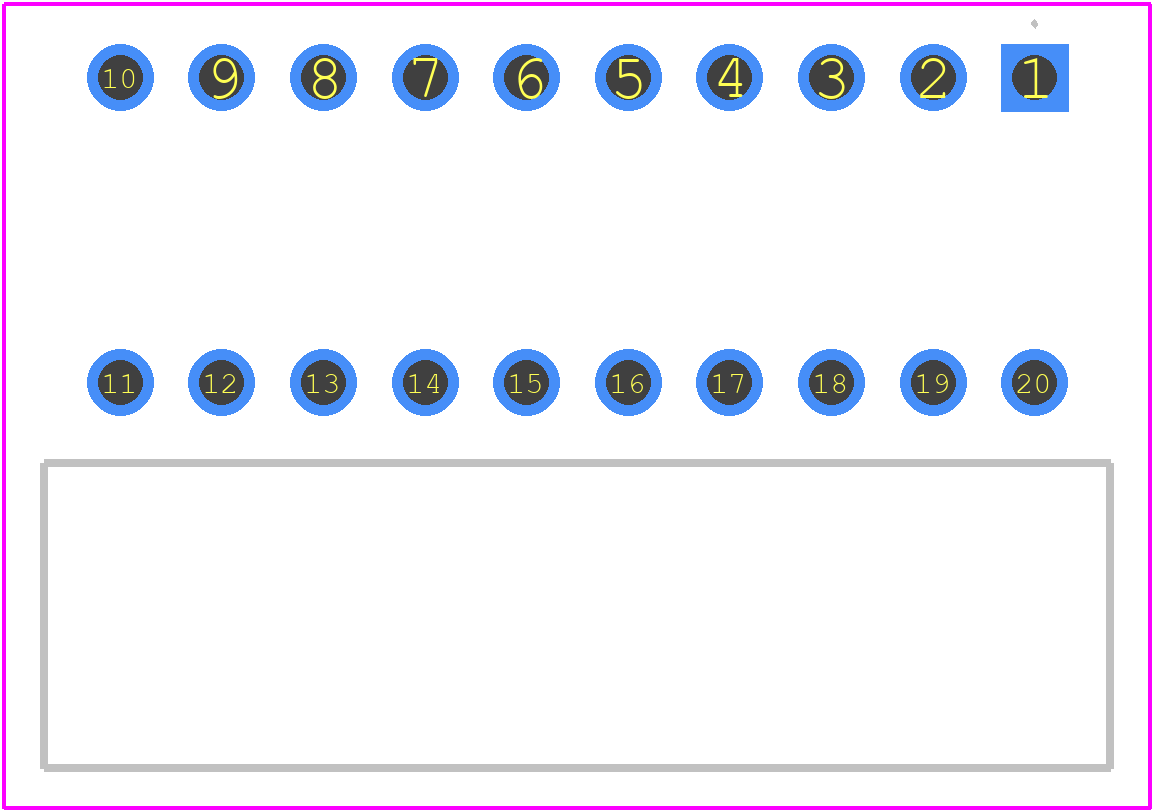

• Are there any specific PCB layout considerations I should be aware of when using this connector?
  Yes, it's essential to follow proper PCB layout guidelines to ensure reliable connections and prevent damage to the connector. Aries Electronics provides PCB layout recommendations in their documentation, which should be consulted during the design process.
