20-823-90T - ARIES

Description: Aries Electronics Vertisocket 2.54mm Pitch Right Angle 20 Way, Through Hole Closed Frame IC Dip Socket, 1.5A

Download 20-823-90T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
20-823-90T - ARIES - PCB symbol
click to zoom

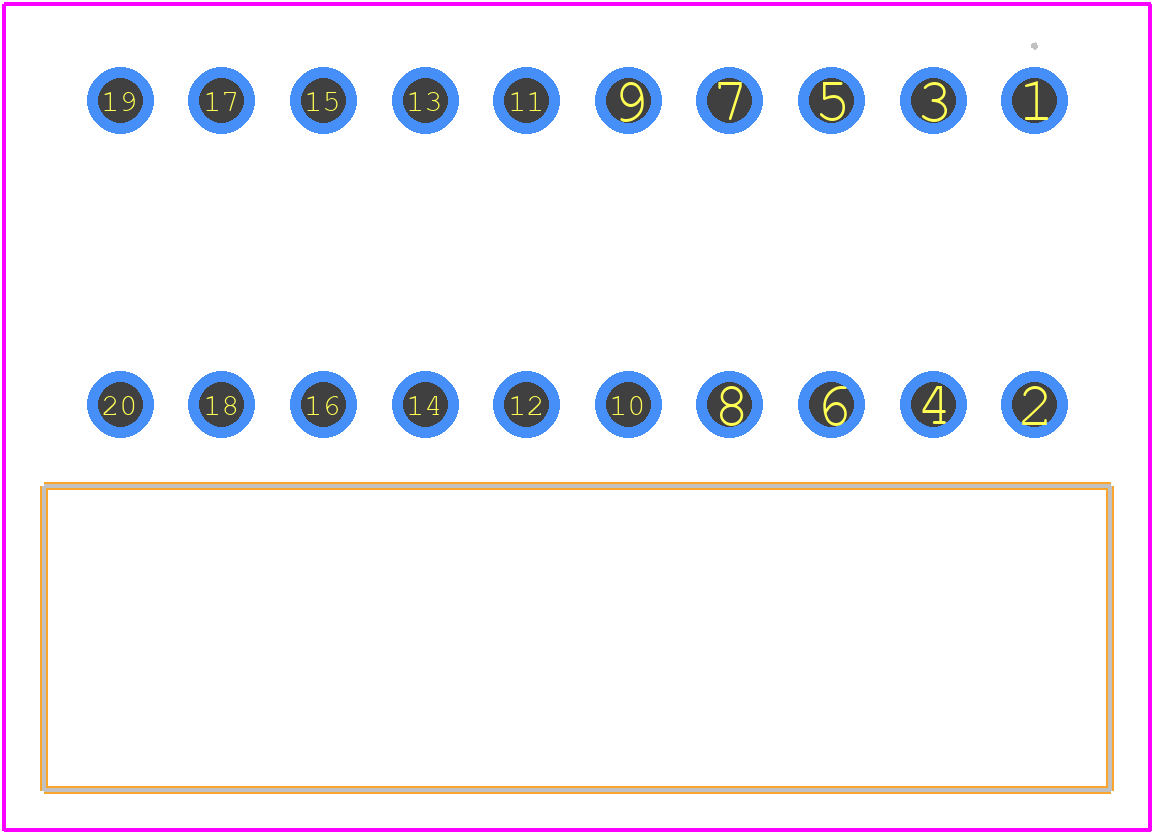

PCB Footprints
20-823-90T - ARIES PCB footprint - Other - Other - 20-823-90T-3
click to zoom
3D Models
20-823-90T - ARIES - 3D model - Other - 20-823-90T-3
click to zoom

20-823-90T Details

  • Manufacturer Part Number:

    20-823-90T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.68 inch

  • Body Length:

    1.05 inch

  • Contact Finish Mating:

    MATTE TIN (200) OVER NICKEL (50)

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    SQ PIN-SKT

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP20

  • Housing Material:

    NYLON46

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    RIGHT ANGLE

  • Number of Contacts:

    20

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

20-823-90T Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs).
  • Yes, the 20-823-90T is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
  • The operating temperature range for the 20-823-90T is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 20-823-90T is compatible with lead-free soldering processes. However, it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
  • The maximum current rating for each contact is 3A. However, it's recommended to derate the current based on the operating temperature and other environmental factors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

20-823-90T Overview

Use the download button to access the 20-823-90T schematic symbol, PCB footprint, and 3D model.
