200-6311-9UN-1900 - 3M

Description: PGA ZIF test socket kit,11x11 grid 3M 2.54mm Pitch Through Hole PGA ZIF Test Socket

Download 200-6311-9UN-1900 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
200-6311-9UN-1900 - 3M - PCB symbol
click to zoom
PCB Footprints

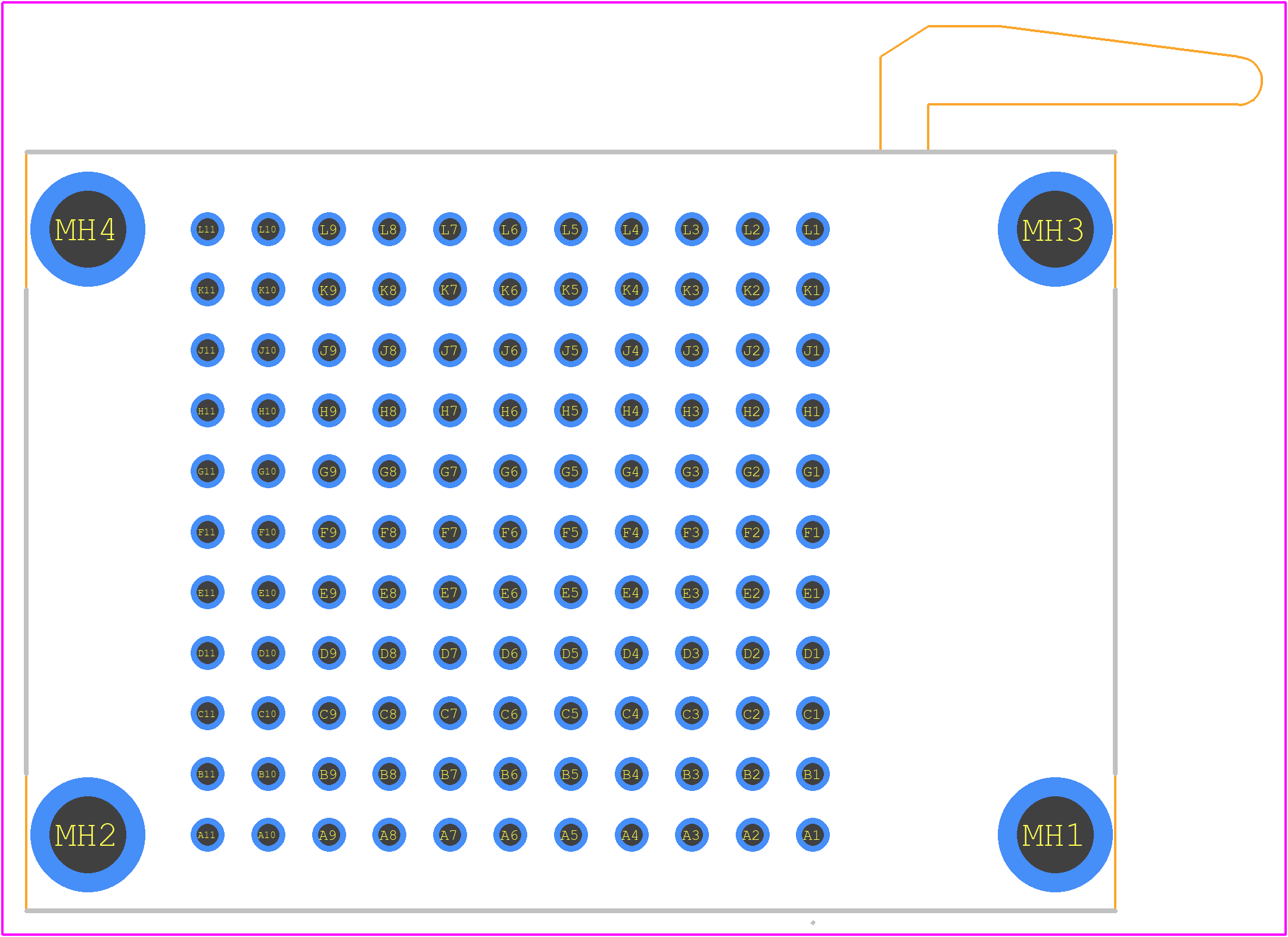

200-6311-9UN-1900 - 3M PCB footprint - Other - Other - 200-6311-9UN-1900-3_2021
click to zoom

200-6311-9UN-1900 Details

  • Manufacturer Part Number:

    200-6311-9UN-1900

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    11 Weeks, 2 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PGA121

  • Housing Material:

    POLYETHERSULFONE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    121

200-6311-9UN-1900 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 200-6311-9UN-1900 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • Yes, the connector is designed to be environmentally sealed and can be used in outdoor applications, but it's recommended to follow proper installation and sealing procedures to ensure IP67 rating.
  • The maximum operating temperature for the 200-6311-9UN-1900 is 125°C (257°F).
  • It's not recommended to use a wire gauge that's not specified in the datasheet, as it may affect the connector's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

200-6311-9UN-1900 Overview

Use the download button to access the 200-6311-9UN-1900 schematic symbol and PCB footprint.
