2000890-2 - TE Connectivity

Description: Fortis Zd !! 3Pr 10Col R/A Left Module Assy

Download 2000890-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2000890-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

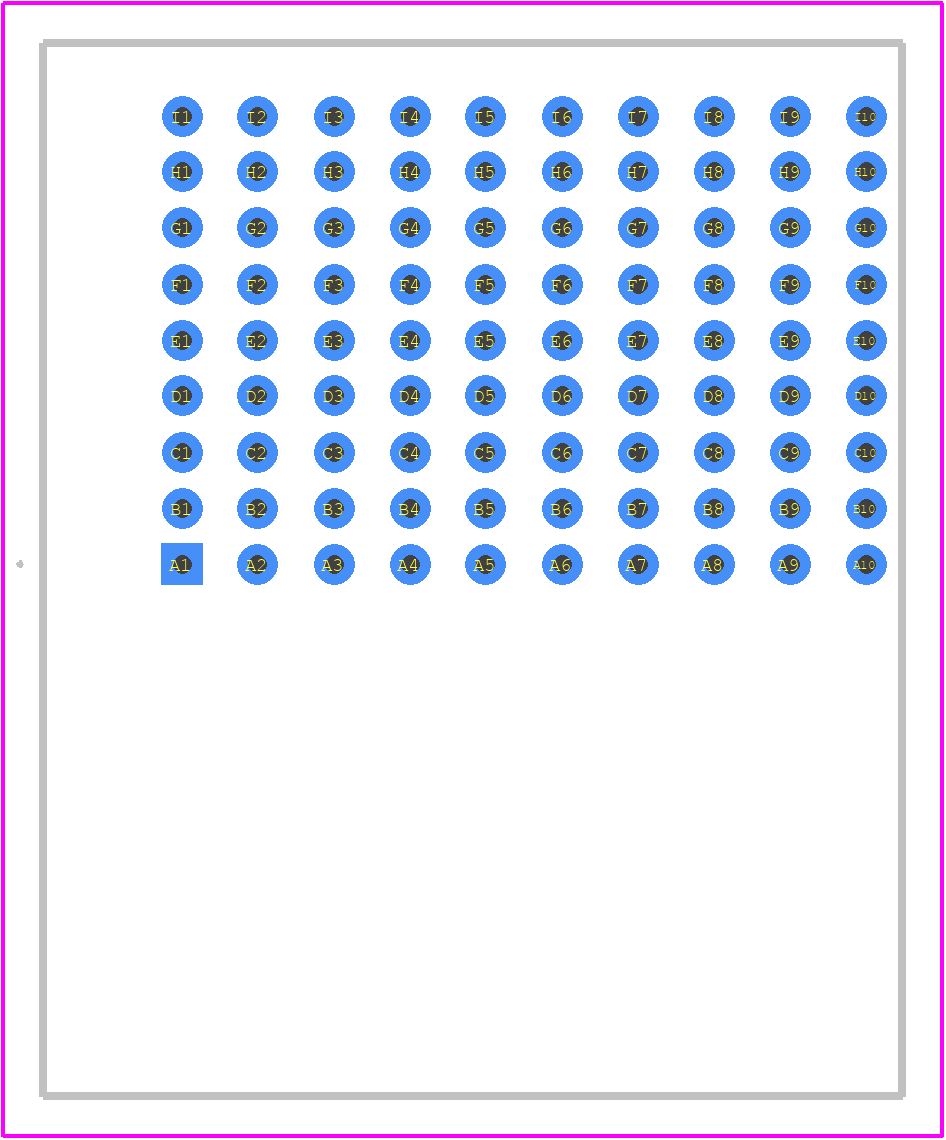

2000890-2 - TE Connectivity PCB footprint - Other - Other - 2000890-2-4
click to zoom
3D Models
2000890-2 - TE Connectivity - 3D model - Other - 2000890-2-4
click to zoom

2000890-2 Details

  • Manufacturer Part Number:

    2000890-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    38 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mating Contact Row Spacing:

    0.055 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1.5 A

  • Terminal Pitch:

    0.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    90

2000890-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 2000890-2 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • The 2000890-2 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures for outdoor use, such as conformal coating or potting.
  • The 2000890-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F).
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to follow the manufacturer's recommended wire gauge specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2000890-2 Overview

Use the download button to access the 2000890-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20008, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
