2000960000 - Weidmüller

Description: PCB terminal, 200 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 8, PUSH IN with actuator, THT solder connection, 90°, Box

Download 2000960000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2000960000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

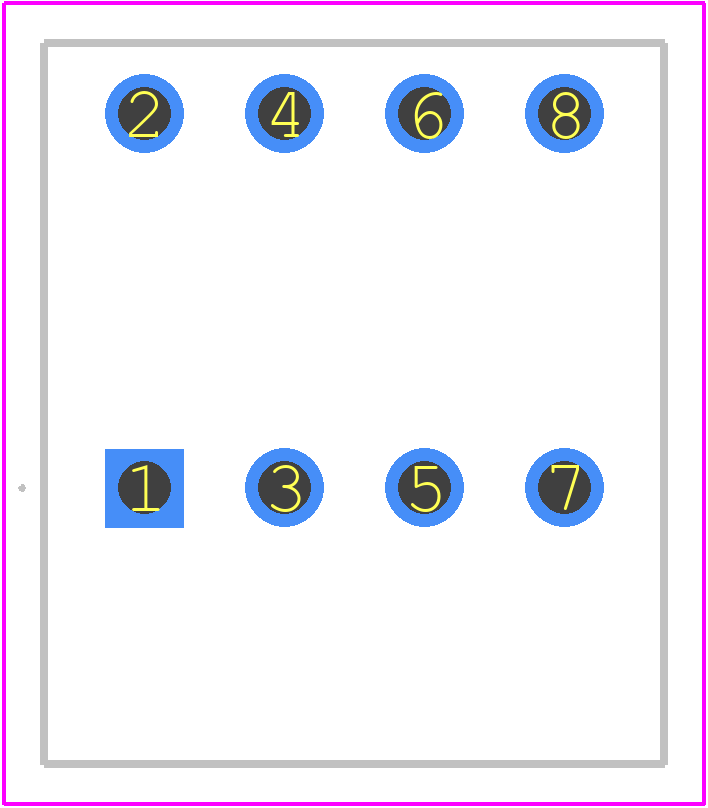

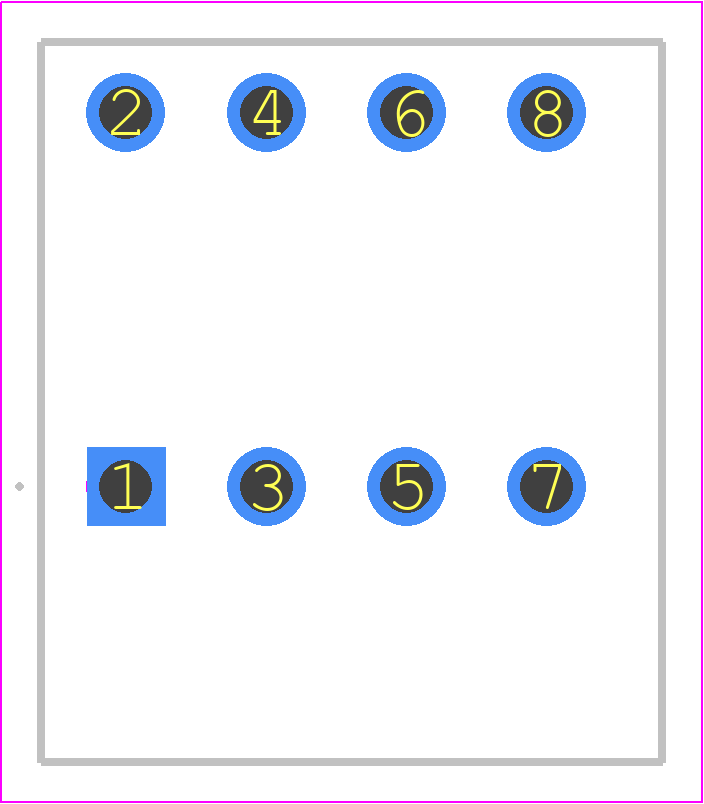

2000960000 - Weidmüller PCB footprint - Other - Other - 2000960000-1
click to zoom
3D Models
2000960000 - Weidmüller - 3D model - Other - 2000960000-1
click to zoom

2000960000 Details

  • Manufacturer Part Number:

    2000960000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

2000960000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Weidmüller Interface GmbH & Co. KG's application notes.
  • Yes, the 2000960000 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Weidmüller's technical support for customized vibration testing.
  • Yes, the 2000960000 is RoHS (2011/65/EU) and REACH (EC 1907/2006) compliant, as stated in the product's declaration of conformity.
  • The operating temperature range for the 2000960000 is -40°C to +85°C, according to the datasheet.
  • The 2000960000 has a protection rating of IP20, which means it's not designed for use in wet or humid environments. However, Weidmüller's technical support can provide guidance on customized solutions for humid environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2000960000 Overview

Use the download button to access the 2000960000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20009, or try a keyword search, such as Terminals and Terminal Blocks
