20011957-00 - TE Connectivity

Description: Dimensions: Digital Temperature Sensor Length .098 INCH | Digital Temperature Sensor Height .75 MM | Digital Temperature Sensor Length 2.5 MM | Width .098 INCH | Digital Temperature Sensor Height .03 INCH | Digital Temperature Sensor Width 2.5 MM | Electrical Characteristics: Digital Temperature Sensor Supply Voltage 2.4 – 5.5 V | Supply Current (Max) 400 MICA | Operation/Application: Output Interface I2C | Temperature Sensor Accuracy ± .5 DEGC | Output/Span Resolution 16 BIT | Packaging Features: Digita

Download 20011957-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

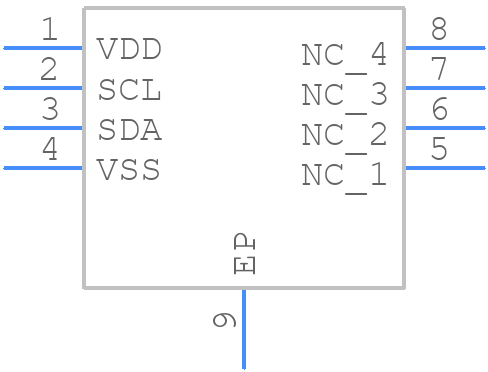

20011957-00 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
20011957-00 - TE Connectivity PCB footprint - Small Outline No-lead - Small Outline No-lead - TSYS02D
click to zoom
3D Models
20011957-00 - TE Connectivity - 3D model - Small Outline No-lead - TSYS02D
click to zoom

20011957-00 Details

  • Manufacturer Part Number:

    20011957-00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TDFN-8

  • Factory Lead Time:

    49 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Accuracy-Max (Cel):

    1.5 Cel

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    2.5 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.005 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C

  • Output Voltage-Max:

    3.3 V

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

20011957-00 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
  • Yes, the 20011957-00 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to consult with their application engineers for specific requirements.
  • The operating temperature range for the 20011957-00 connector is -40°C to 125°C (-40°F to 257°F), but it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 20011957-00 connector is designed to be resistant to corrosion and can operate in humid environments, but it's crucial to follow TE Connectivity's guidelines for environmental sealing and to consult with their application engineers for specific requirements.
  • Yes, the 20011957-00 connector is designed to be compatible with other TE Connectivity products, but it's recommended to consult with their application engineers to ensure compatibility and optimal performance with third-party components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

20011957-00 Overview

Use the download button to access the 20011957-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20011, or try a keyword search, such as Temperature Sensors
