Description: Configuration Features: Number of Ports 1 | Lightpipe Style Standard | Port Matrix Configuration 1 x 1 | Dimensions: PCB Thickness (Recommended) .089 INCH | PCB Thickness (Recommended) 2.25 MM | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Cage Material Nickel Silver | Industry Standards: UL Flammability Rating UL 94V-0 | Operation/Application: Pluggable I/O Applications SFP+ | Heat Sink Compatible No | Other: EMI Containment Feature Type Internal/External EMI Springs | Included Li

Download 2007254-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

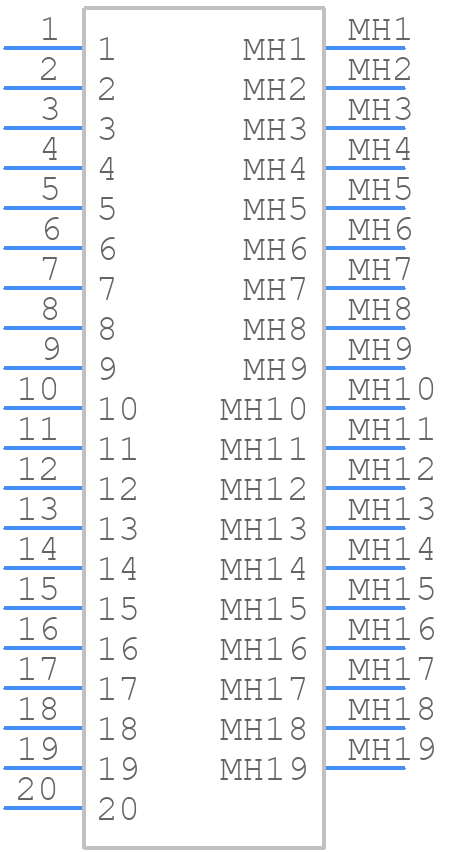

2007254-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

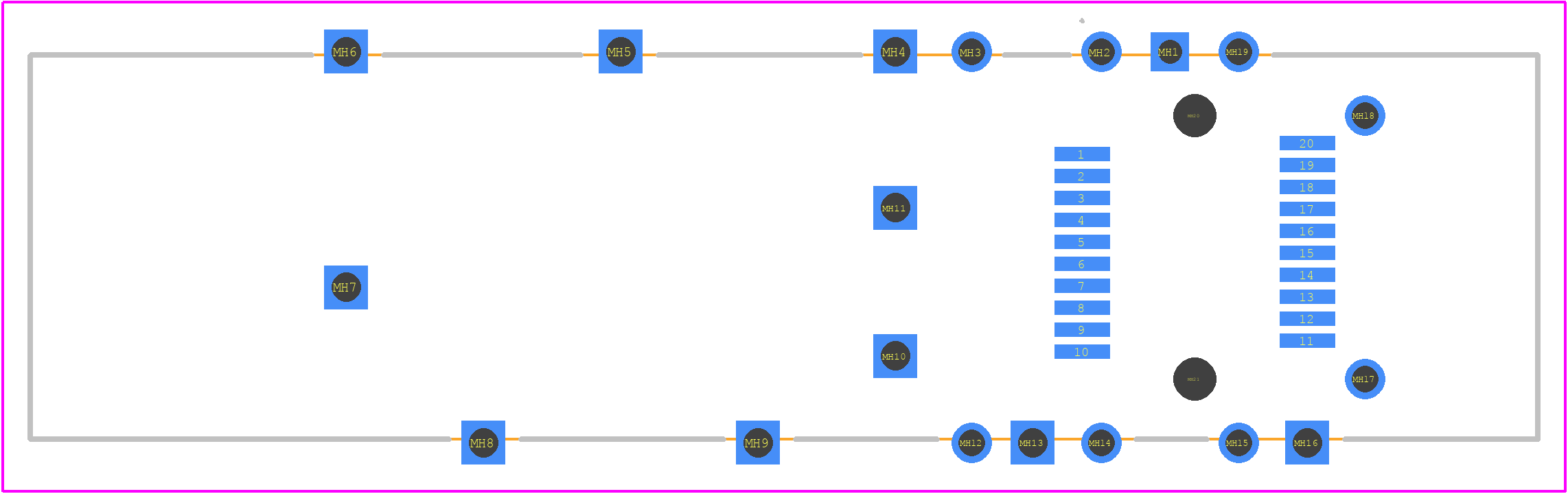

2007254-1 - TE Connectivity PCB footprint - Other - Other - 2007254-1-3
click to zoom
3D Models
2007254-1 - TE Connectivity - 3D model - Other - 2007254-1-3
click to zoom

2007254-1 Details

  • Manufacturer Part Number:

    2007254-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Manufacturer:

    TE Connectivity

  • Approvals:

    UL

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    COMPLIANT FIT

  • Used With:

    SFP SMT CONNECTOR

  • Wire Gauge:

    0 AWG

2007254-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2007254-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2007254-1 connector has a IP67 rating, making it suitable for outdoor or harsh environmental applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 2007254-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
  • Yes, the 2007254-1 connector is designed to be compatible with other TE Connectivity products and accessories. However, it's essential to verify compatibility and follow proper installation procedures to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2007254-1 Overview

Use the download button to access the 2007254-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20072, or try a keyword search, such as Assembly Items

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
