2007263-1 - TE Connectivity

Description: Configuration Features: Number of Ports 2 | Port Matrix Configuration 1 x 2 | Dimensions: PCB Thickness (Recommended) 2.25 MM | PCB Thickness (Recommended) .089 INCH | Electrical Characteristics: Data Rate (Max) 16 GBS | Housing Features: Cage Material Nickel Silver | Operation/Application: Pluggable I/O Applications SFP+ | Heat Sink Compatible No | Other: Included Lightpipe No | EMI Containment Feature Type Internal/External EMI Springs | Packaging Features: Packaging Method Box | Product Type Features: Se

Download 2007263-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2007263-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

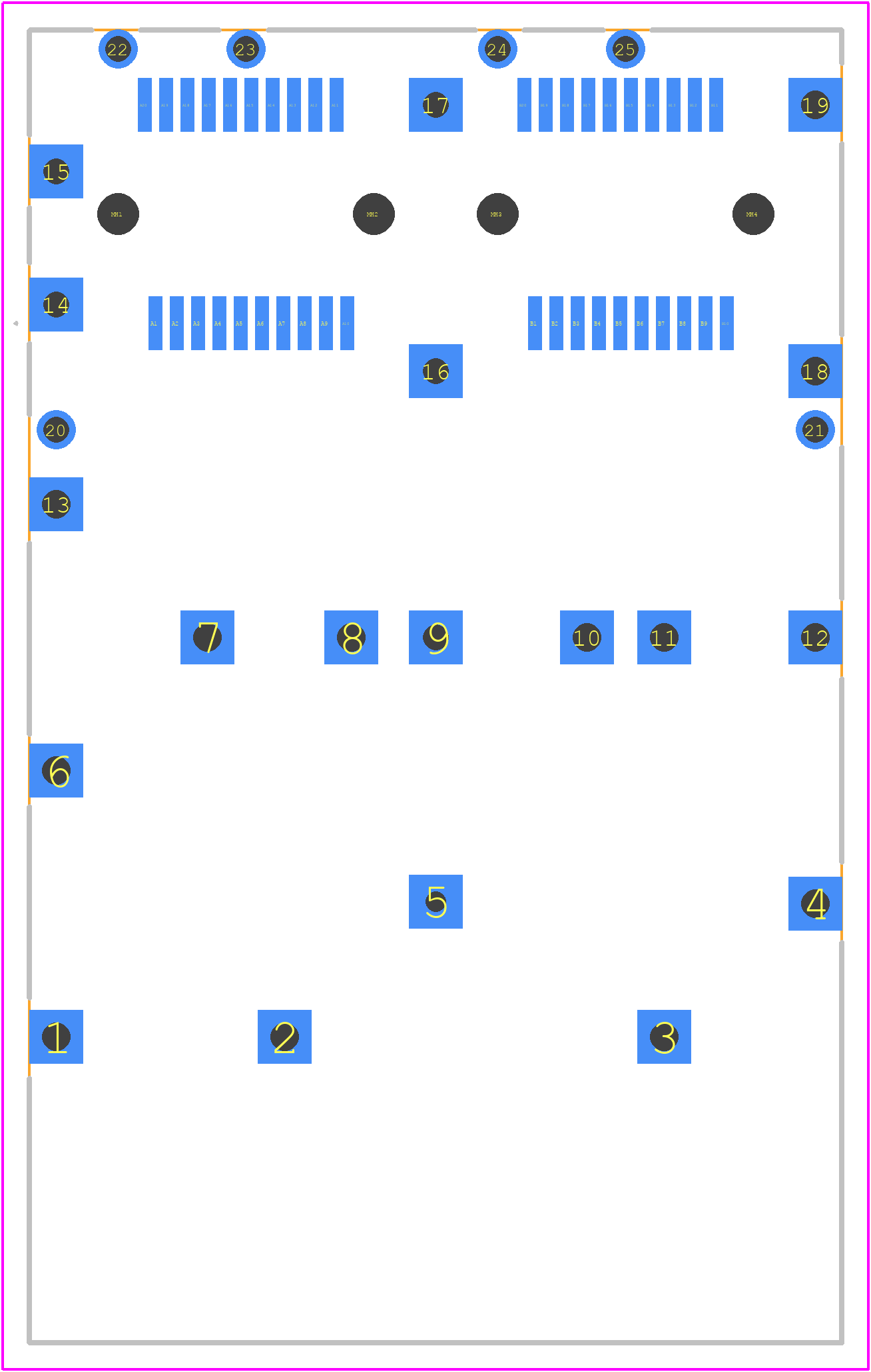

2007263-1 - TE Connectivity PCB footprint - Other - Other - 2007263-1-5
click to zoom
3D Models
2007263-1 - TE Connectivity - 3D model - Other - 2007263-1-5
click to zoom

2007263-1 Details

  • Manufacturer Part Number:

    2007263-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • Manufacturer:

    TE Connectivity

  • Assembly Item Name:

    CAGE ASSEMBLY

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    NICKEL SILVER ALLOY

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    COMPLIANT FIT

  • Wire Gauge:

    0 AWG

2007263-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 2007263-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 2007263-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 2007263-1 connector is designed for indoor applications. For outdoor or harsh environmental applications, consider using connectors with additional protection, such as IP67 or IP69K ratings, or consult with TE Connectivity for custom solutions.
  • The 2007263-1 connector is designed for specific wire gauges and types. Consult the datasheet and TE Connectivity's application notes for guidance on compatible wire gauges and types. Using incompatible wires may affect performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2007263-1 Overview

Use the download button to access the 2007263-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20072, or try a keyword search, such as Assembly Items

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
