2007788-1 - TE Connectivity

2007788-1 Details

• Manufacturer Part Number:

  2007788-1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  8 Weeks, 3 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.75

• Board Mounting Option:

  COMPLIANT BOARDLOCK

• Body Breadth:

  0.657 inch

• Body Depth:

  0.47 inch

• Body Length:

  0.744 inch

• Body/Shell Style:

  RECEPTACLE

• Characteristic Impedance:

  100 Ω

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  BLADE PIN-SKT

• DIN Conformance:

  NO

• Durability:

  20 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  40.032 N

• Insulation Resistance:

  10000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED LIQUID CRYSTAL POLYMER

• MIL Conformance:

  NO

• Mains Connector Rating:

  .75A

• Mating Contact Pitch:

  0.075 inch

• Mating Contact Row Spacing:

  0.053 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  9

• Number of Ports:

  1

• Number of Rows Loaded:

  9

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

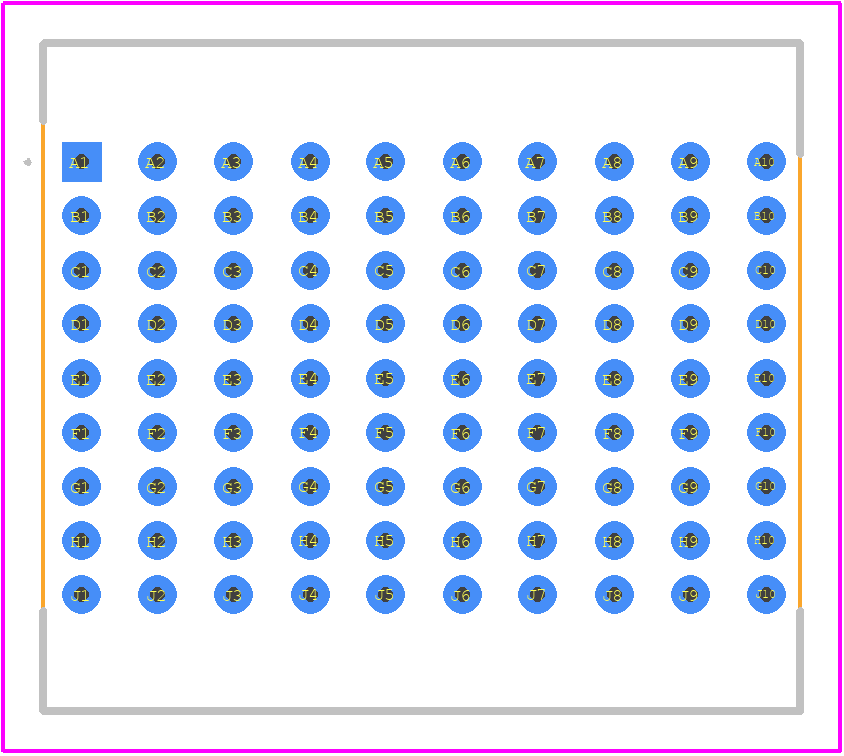

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.3462 mm

• Panel Mount:

  NO

• Plating Thickness:

  29.92u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  0.75 A

• Rated Voltage:

  30 V

• Reference Standard:

  UL

• Terminal Length:

  0.055 inch

• Terminal Pitch:

  1.9 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  90

• UL Flammability Code:

  94V-0
