200UDP1T1A1M6RE - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC DPDT, On-On Through Hole, Right Angle

Download 200UDP1T1A1M6RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 200UDP1T1A1M6RE model

Email notifications will be applied after download.

Send part feedback

Symbol

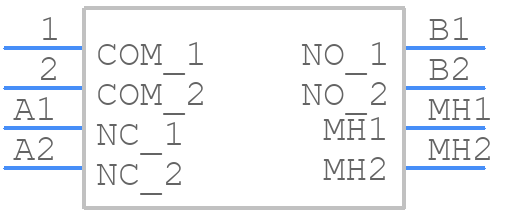

200UDP1T1A1M6RE - E-Switch - PCB symbol

PCB Footprints

200UDP1T1A1M6RE - E-Switch PCB footprint - Other - Other - 200UDP1T1A1M6RE-1

3D Models

200UDP1T1A1M6RE - E-Switch - 3D model - Other - 200UDP1T1A1M6RE-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 200UDP1T1A1M6RE
Part Number 200UDP1T1A1M6RE
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 200UDP1T1A1M6RE-1
Released Date Apr 4, 2024
Last Modified Date Jan 20, 2025 7:01 AM UTC
Pinout / Pin List Click Here (Member Only)

200UDP1T1A1M6RE Details

Manufacturer Part Number:
200UDP1T1A1M6RE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.90.65
Manufacturer:
E-Switch Inc
YTEOL:
8
Switch Type:
TOGGLE SWITCH
