200USP9T1A1M2RE footprint, schematic symbol and 3D model by E-Switch

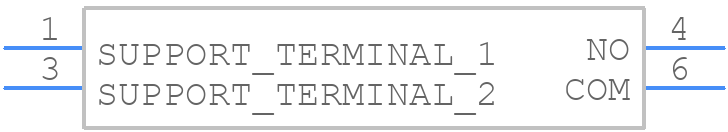

Symbol

PCB Footprints

3D Models

200USP9T1A1M2RE Details

The recommended operating temperature range for the 200USP9T1A1M2RE switch is -20°C to 85°C.
Yes, the 200USP9T1A1M2RE switch is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
The maximum current rating for the 200USP9T1A1M2RE switch is 0.5A per contact.
Yes, the 200USP9T1A1M2RE switch is compatible with lead-free soldering processes and is RoHS compliant.
The typical bounce time for the 200USP9T1A1M2RE switch is 5ms.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 200USP9T1A1M2RE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 200US, or try a keyword search, such as Toggle Switches
