2018431030 - Molex

Description: MultiCat High-Power Right-Angle Header, 3 Circuits, Key A, Black

Download 2018431030 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2018431030 - Molex - PCB symbol
click to zoom
PCB Footprints

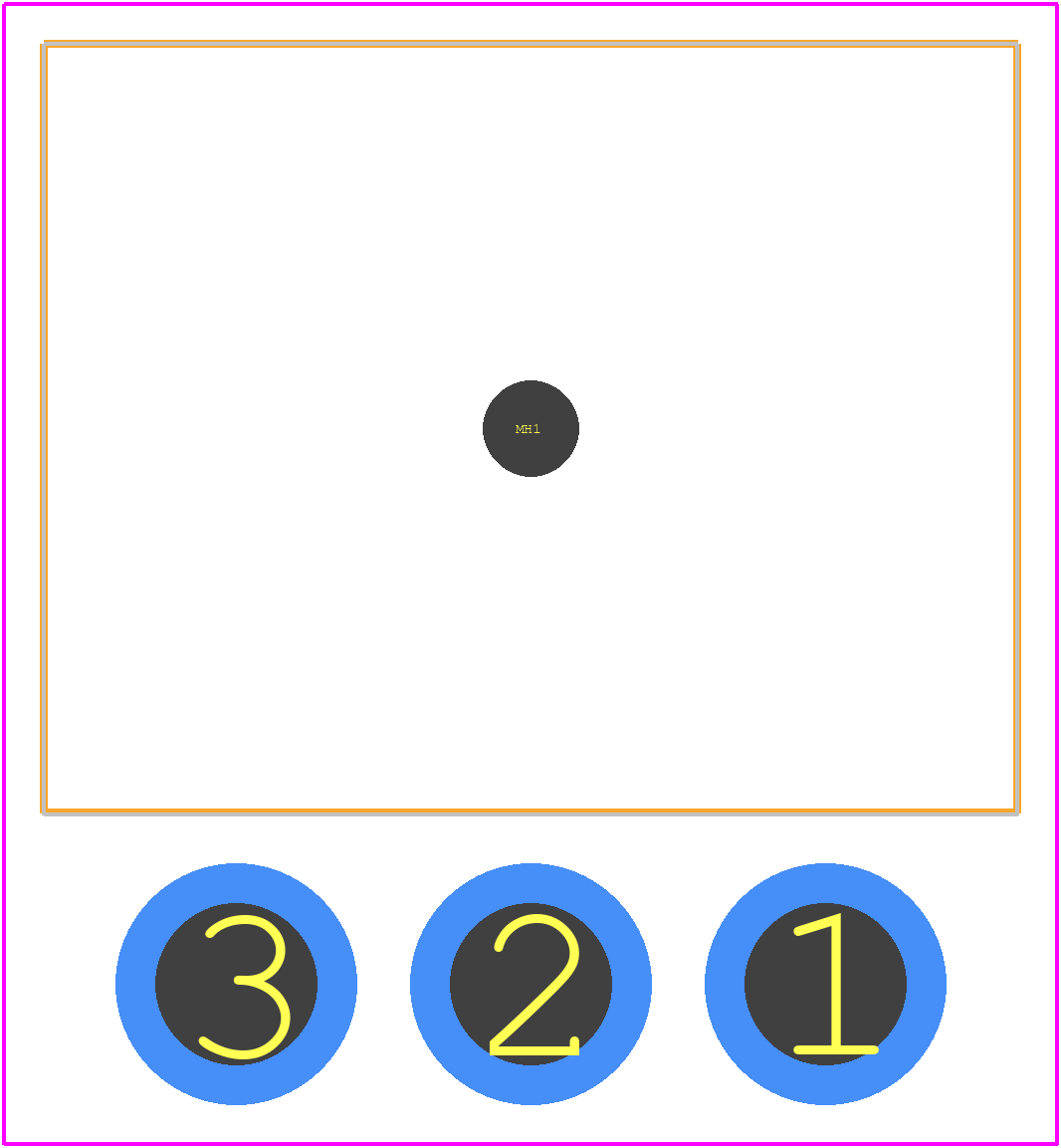

2018431030 - Molex PCB footprint - Other - Other - 2018431030-1
click to zoom
3D Models
2018431030 - Molex - 3D model - Other - 2018431030-1
click to zoom

2018431030 Details

  • Manufacturer Part Number:

    2018431030

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Czechia, Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7.44

  • Body Breadth:

    0.38 inch

  • Body Length:

    0.963 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYETHERIMIDE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    40 A

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

2018431030 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2018431030 connector is designed to withstand high-vibration environments. Molex has tested this connector to meet the IEC 61373 vibration standard, making it suitable for use in applications with high vibration levels.
  • The 2018431030 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
  • Yes, the 2018431030 connector is designed to be compatible with automated assembly processes, including pick-and-place machines and automated wire termination equipment. This makes it an ideal choice for high-volume production applications.
  • The 2018431030 connector is designed to accommodate wire sizes ranging from 24 AWG to 16 AWG. It's essential to follow the recommended wire size range to ensure reliable connections and prevent damage to the connector or wire.
