2021601302 - HARTING

Description: Connectors, Female connector, Press-in termination, Rated current: ‌1 A, Contacts: 160, Straight, Copper alloy, Noble metal, Mating side, Nickel plated, Termination side, Performance level: 1, acc. to IEC 61076-4-113, PCB fixing: Without fixing flange, Liquid crystal polymer (LCP), Beige

Download 2021601302 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 2021601302 model

Email notifications will be applied after download.

Send part feedback

Symbol

2021601302 - HARTING - PCB symbol

PCB Footprints

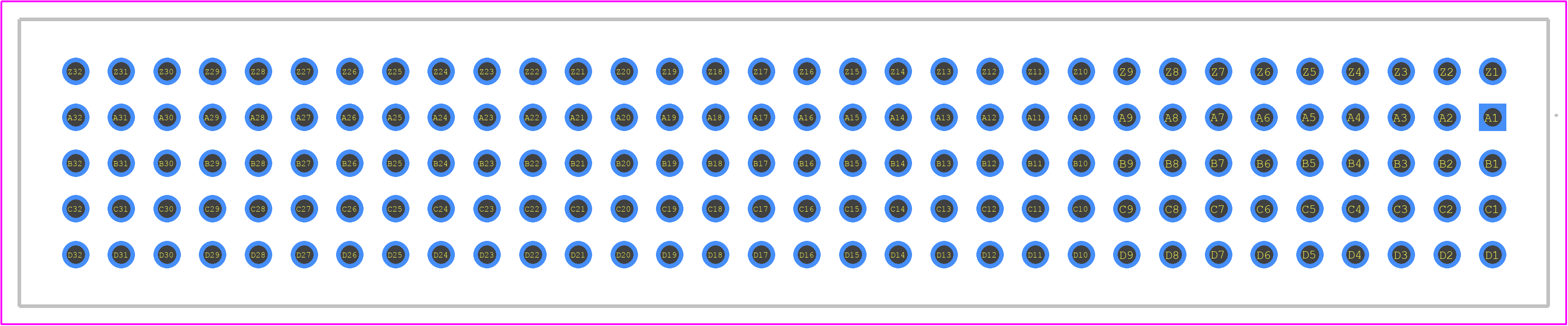

2021601302 - HARTING PCB footprint - Other - Other - 2021601302-2

3D Models

2021601302 - HARTING - 3D model - Other - 2021601302-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2021601302
Part Number 2021601302
Manufacturer HARTING
Pin Count 160
Part Category Connector
Package Category Other
Footprint Name Other - 2021601302-2
Released Date Jun 28, 2021
Last Modified Date Oct 24, 2023 6:28 AM UTC
