203-2737-55-1102 - 3M

Description: 3 (Rectangular) Pos Transistor, TO-3 and TO-66 Socket Gold Through Hole

Download 203-2737-55-1102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
203-2737-55-1102 - 3M - PCB symbol
click to zoom
PCB Footprints

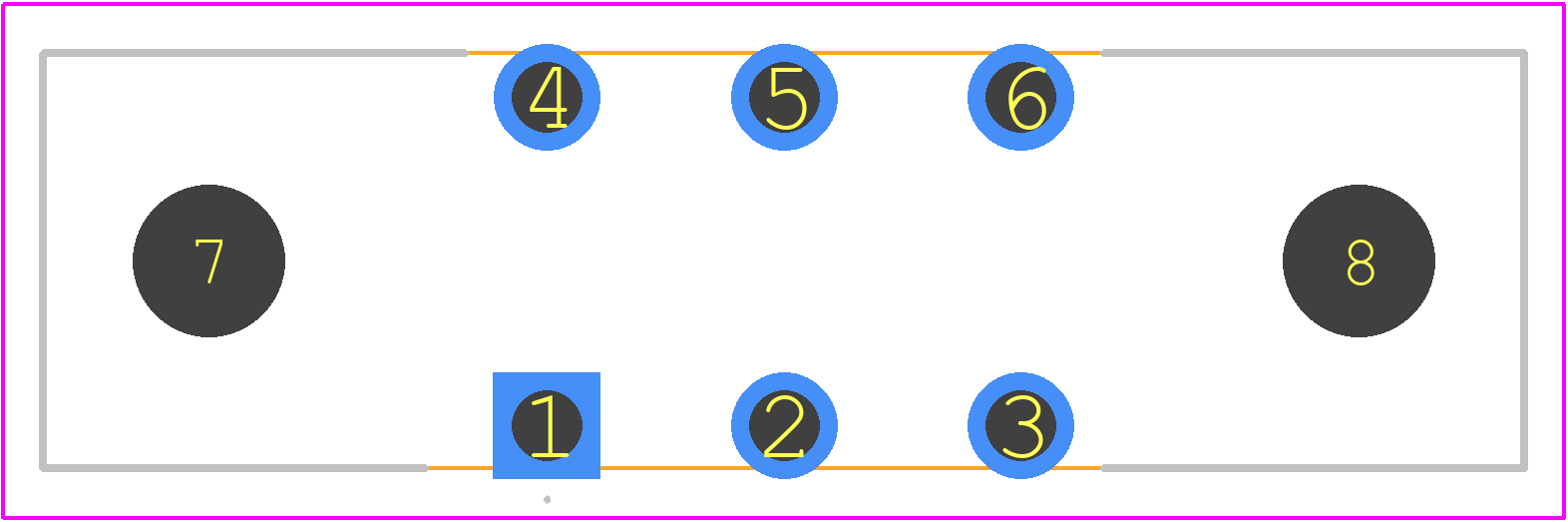

203-2737-55-1102 - 3M PCB footprint - Other - Other - 203-2737-55-1102-4
click to zoom
3D Models
203-2737-55-1102 - 3M - 3D model - Other - 203-2737-55-1102-4
click to zoom

203-2737-55-1102 Details

  • Manufacturer Part Number:

    203-2737-55-1102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    3M Interconnect

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • JESD-609 Code:

    e4

  • Number of Contacts:

    3
