2034560003 - Molex

Description: Mirror Mezz Hermaphroditic Connector, 5.50mm Connector Height, BGA-Attach Mounting, 7 Pair, 11 Row, 699 Circuits, 0.76µm Gold (Au) Plating, without Pegs

Download 2034560003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2034560003 - Molex - PCB symbol
click to zoom
PCB Footprints

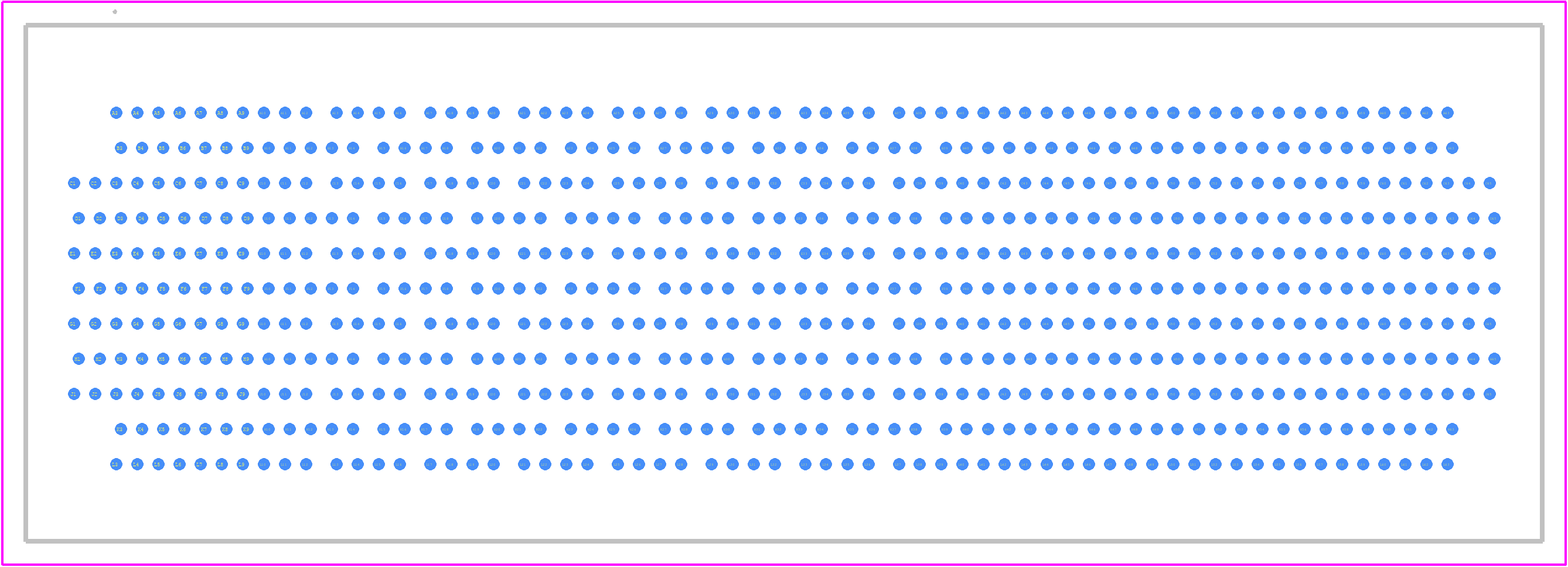

2034560003 - Molex PCB footprint - Other - Other - 2034560003-2
click to zoom
3D Models
2034560003 - Molex - 3D model - Other - 2034560003-2
click to zoom

2034560003 Details

  • Manufacturer Part Number:

    2034560003

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LOW HALOGEN AND ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    HERMAPHRODITIC

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    11

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    699

2034560003 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections.
  • Yes, the 2034560003 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The operating temperature range for the 2034560003 connector is -40°C to 105°C (-40°F to 221°F). Exceeding this range may affect the connector's performance and reliability.
  • While the 2034560003 connector is designed to be reliable, it's not specifically designed for outdoor or harsh environment applications. For such applications, consider using connectors with additional protection, such as IP67 or IP69K ratings.
  • The 2034560003 connector is designed to be compatible with other Molex products. However, when using it with third-party components, ensure compatibility and follow the manufacturer's guidelines to avoid any potential issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2034560003 Overview

Use the download button to access the 2034560003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20345, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
