2035239-1 - TE Connectivity

Description: Vertical, Wire-to-Board, 54 Position, 3 Rows, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, Signal, Black, Generation Y Connector System

Download 2035239-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2035239-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

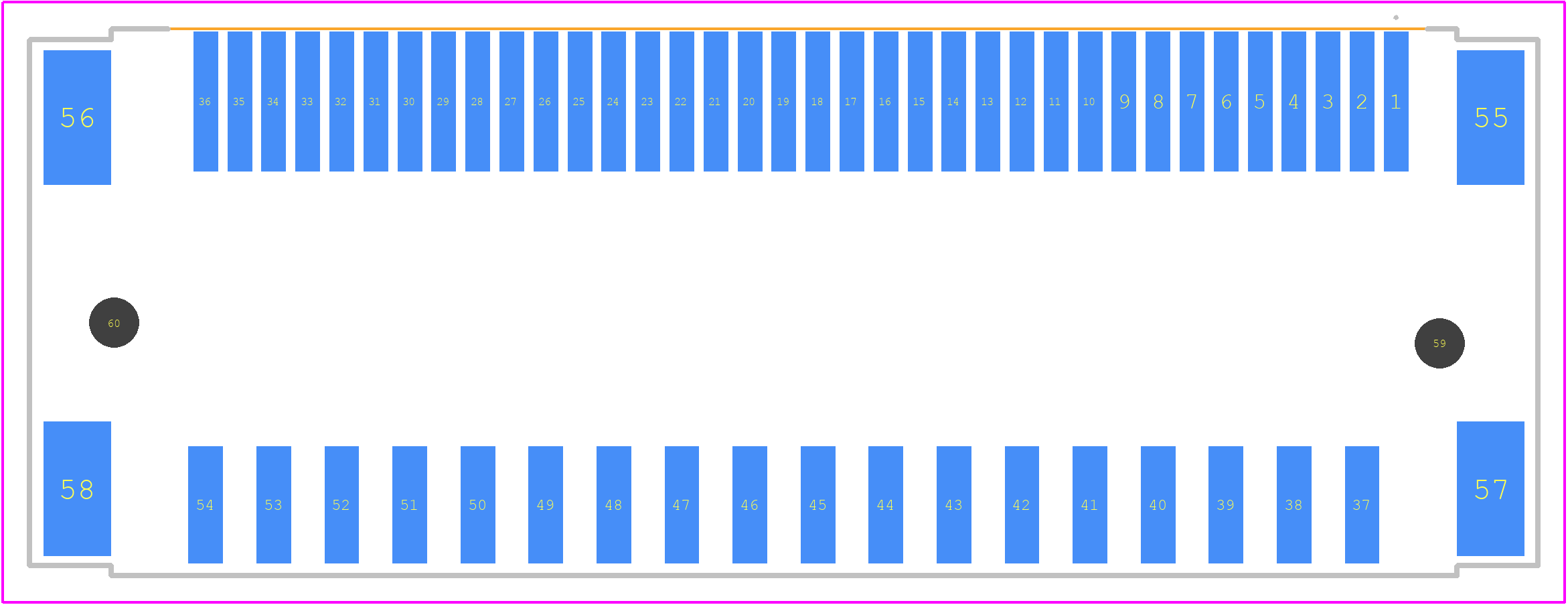

2035239-1 - TE Connectivity PCB footprint - Other - Other - 2035239-1-2
click to zoom
3D Models
2035239-1 - TE Connectivity - 3D model - Other - 2035239-1-2
click to zoom

2035239-1 Details

  • Manufacturer Part Number:

    2035239-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    54

2035239-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 2035239-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure proper mating and prevent damage to the connector.
  • Yes, the 2035239-1 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibrations up to 10G.
  • Yes, the 2035239-1 connector is designed to operate in harsh environments. It has a temperature range of -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance.
  • The 2035239-1 connector has a mating cycle life of up to 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the 2035239-1 connector is designed to be compatible with other TE Connectivity products, including cables, backshells, and accessories. It's essential to ensure compatibility before selecting a connector for your application.
