20374-R30E-31 footprint, schematic symbol and 3D model by I-Pex

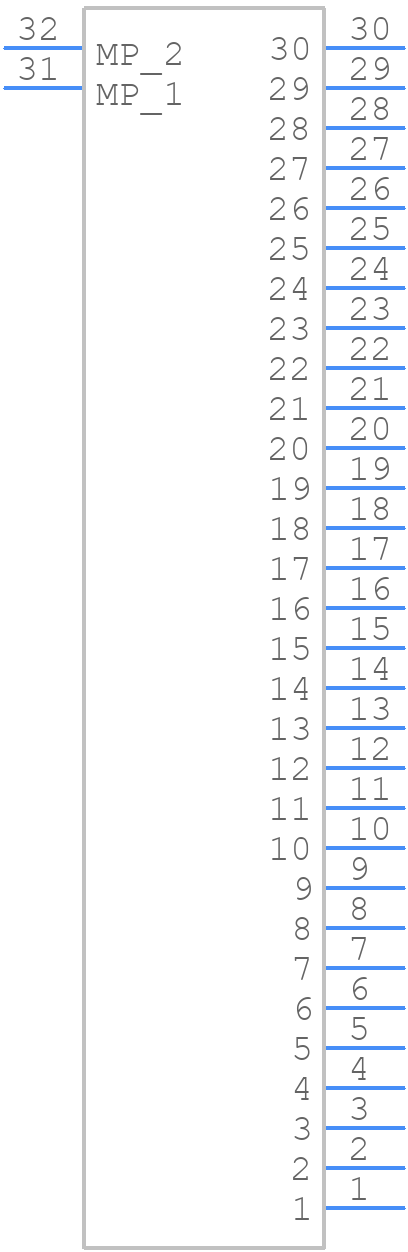

Symbol

click to zoom

PCB Footprints

20374-R30E-31 - I-Pex PCB footprint - Other - Other - 20374-R30E-31-3

click to zoom

3D Models

20374-R30E-31 - I-Pex - 3D model - Other - 20374-R30E-31-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 20374-R30E-31
Part Number 20374-R30E-31
Manufacturer I-Pex
Pin Count 32
Part Category Connector
Package Category Other
Footprint Name Other - 20374-R30E-31-3
Released Date Sep 22, 2022
Last Modified Date Jun 17, 2026 9:36 AM UTC
Pinout / Pin List Click Here (Member Only)

20374-R30E-31 Details

Manufacturer Part Number:
20374-R30E-31
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
I-PEX Co Ltd
Body Breadth:
0.081 inch
Body Depth:
0.118 inch
Body Length:
0.693 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
600 mΩ
Contact Style:
TELCOM, MODULAR
DIN Conformance:
NO
Dielectric Withstanding Voltage:
250VAC V
Durability:
30 Cycles
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
1
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
3.937u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
0.3 A
Reference Standard:
UL
Terminal Pitch:
0.4 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
30
UL Flammability Code:
94V-0

20374-R30E-31 Frequently Asked Questions (FAQs)

The recommended mating cycle for the 20374-R30E-31 connector is 500 cycles. However, it's essential to consult with I-PEX Co Ltd or an authorized distributor for specific guidance on mating cycles, as it may vary depending on the application and environmental conditions.
While the 20374-R30E-31 connector is designed to be robust, it's crucial to evaluate its performance in high-vibration environments. I-PEX Co Ltd recommends consulting their application notes and performing thorough testing to ensure the connector meets the specific requirements of your application.
The maximum operating temperature for the 20374-R30E-31 connector is 85°C (185°F). However, it's essential to note that the connector's performance may degrade at higher temperatures, and I-PEX Co Ltd recommends consulting their datasheet and application notes for specific guidance.
Yes, the 20374-R30E-31 connector is compatible with lead-free soldering processes. I-PEX Co Ltd ensures that their connectors meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
I-PEX Co Ltd recommends storing the 20374-R30E-31 connector in a dry, cool place, away from direct sunlight and moisture. The ideal storage conditions are a temperature range of 10°C to 30°C (50°F to 86°F) and a relative humidity of 60% or less.

Trust Checks

Community Provided

System Verified

Community Approved

20374-R30E-31 Overview

Use the download button to access the 20374-R30E-31 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 20374, or try a keyword search, such as Telecom and Datacom Connectors
