204-125ST - CTS

Description: Switch DIP OFF ON SPDT 5 Raised Slide 0.05A 24VDC Gull Wing 2.54mm SMD Tube

Download 204-125ST Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 204-125ST model

Email notifications will be applied after download.

Send part feedback

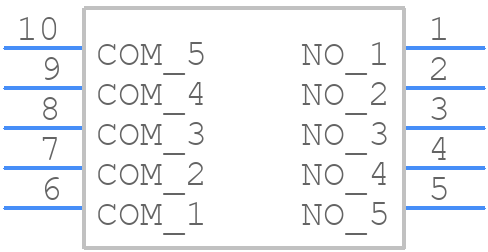

Symbol

204-125ST - CTS - PCB symbol

PCB Footprints

204-125ST - CTS PCB footprint - Other - Other - 204-125ST-3

3D Models

204-125ST - CTS - 3D model - Other - 204-125ST-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for 204-125ST
Part Number 204-125ST
Manufacturer CTS
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - 204-125ST-3
Released Date Oct 26, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

204-125ST Details

Manufacturer Part Number:
204-125ST
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8536.50.90.65
Factory Lead Time:
4 Weeks
Manufacturer:
CTS Corporation
YTEOL:
6.8
Body Breadth:
10.41 mm
Body Height:
9.12 mm
Body Length or Diameter:
27.58 mm
Contact Current(DC)-Max:
0.1 A
Contact (DC) Max Rating R Load:
.1A@50VDC
Contact Voltage(DC)-Max:
50 V
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT-STRAIGHT
Number of Switch Sections:
5
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Sealing:
BOTTOM SEALED; TOP TAPE SEALED
Surface Mount:
NO
Switch Action:
LATCHED
Switch Function:
SPDT
Switch Type:
SLIDE DIP SWITCH
Terminal Finish:
Gold (Au)
Termination Type:
SOLDER

204-125ST Frequently Asked Questions (FAQs)

The recommended storage temperature range for the 204-125ST is -40°C to 125°C.
Yes, the 204-125ST is designed to withstand high-vibration environments, making it suitable for use in industrial and automotive applications.
Yes, the 204-125ST is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
The typical power dissipation of the 204-125ST is 250 mW, but this can vary depending on the specific application and operating conditions.
Yes, the 204-125ST is designed and manufactured to meet the requirements of high-reliability applications, including aerospace, defense, and medical devices.

Trust Checks

Expert Contribution

System Verified

Community Approved

204-125ST Overview

Use the download button to access the 204-125ST schematic symbol, PCB footprint, and 3D model.
