CTS recommends a ground plane underneath the component, and keeping the input and output traces as short as possible to minimize noise and signal degradation.
Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or pressure during soldering.
The 204-216ST can operate safely between -40°C to 125°C, but it's recommended to derate the component's performance at temperatures above 85°C.
Yes, the 204-216ST is designed to withstand vibrations up to 10g peak acceleration, but it's recommended to secure the component to the PCB using a suitable adhesive or mechanical fastening method.
Check for proper soldering, ensure correct pin orientation, and verify that the input and output signals are within the specified voltage ranges. If issues persist, consult the CTS Corporation application notes or contact their technical support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
204-216ST Overview

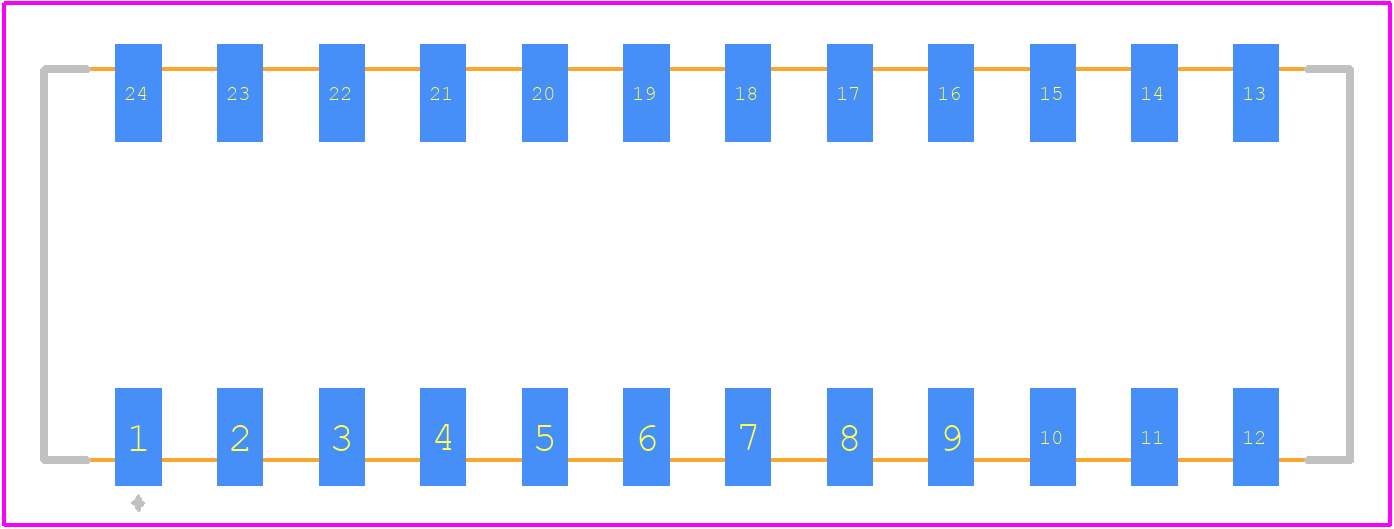

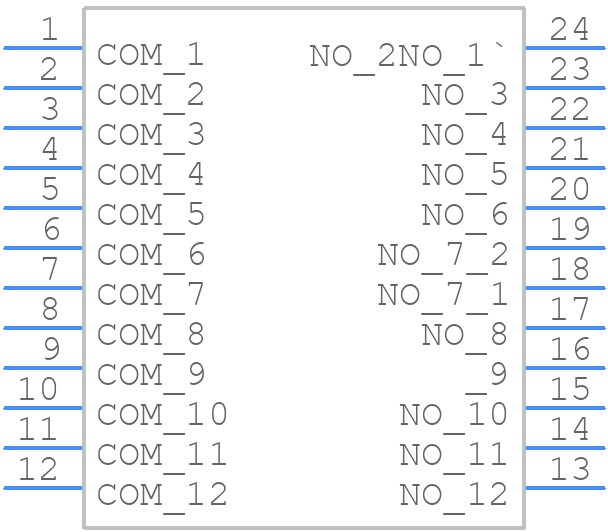

Use the download button to access the 204-216ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 204-2,
or try a keyword search, such as DIP Switches
