2041119-1 - TE Connectivity

Description: 52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black

Download 2041119-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2041119-1 - TE Connectivity - PCB symbol
click to zoom

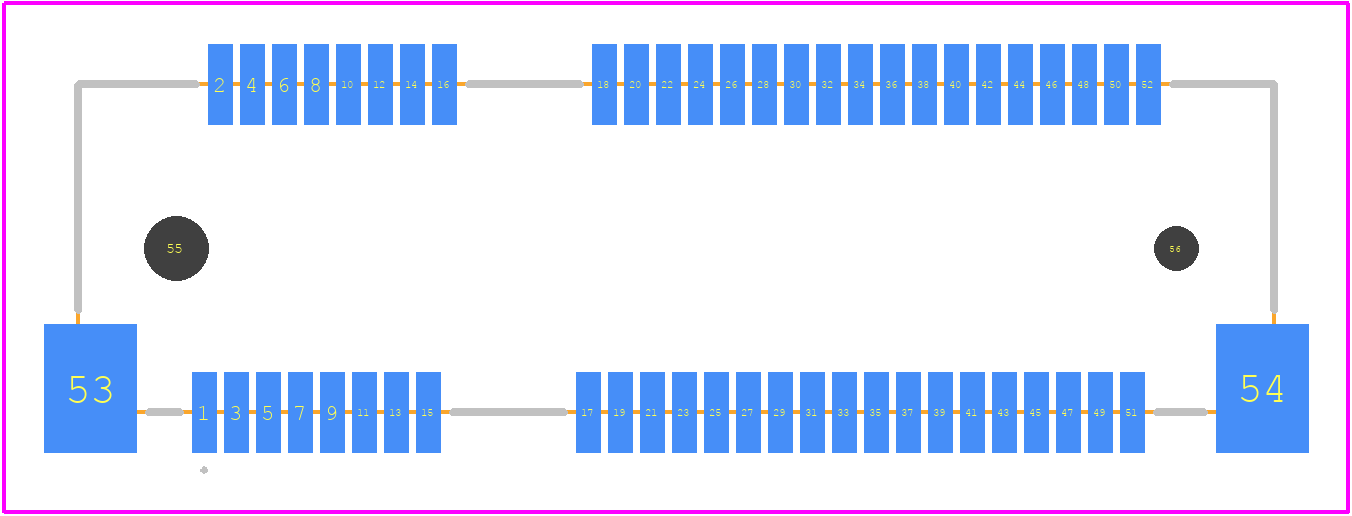

PCB Footprints
2041119-1 - TE Connectivity PCB footprint - Other - Other - 2041119-1-2
click to zoom
3D Models
2041119-1 - TE Connectivity - 3D model - Other - 2041119-1-2
click to zoom

2041119-1 Details

  • Manufacturer Part Number:

    2041119-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Breadth:

    0.157 inch

  • Body Depth:

    0.323 inch

  • Body Length:

    1.177 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.031 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    4.2 mm

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    52

  • UL Flammability Code:

    94V-0

2041119-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the specific application requirements and environmental conditions to determine the optimal torque value.
  • Yes, the 2041119-1 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's crucial to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
  • The 2041119-1 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to consult the datasheet and application notes for specific environmental requirements and any necessary precautions.
  • The maximum current rating for the 2041119-1 connector is 3A per contact. However, it's crucial to consider the specific application requirements, wire gauge, and insulation to ensure safe and reliable operation.
  • Yes, the 2041119-1 connector is designed to be compatible with other TE Connectivity products and can be used with third-party components. However, it's essential to ensure compatibility and consult the datasheet and application notes for specific guidance.
