- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 2041262-2
- Part Number 2041262-2
- Manufacturer TE Connectivity
- Pin Count 54
- Part Category Connector
- Package Category Other

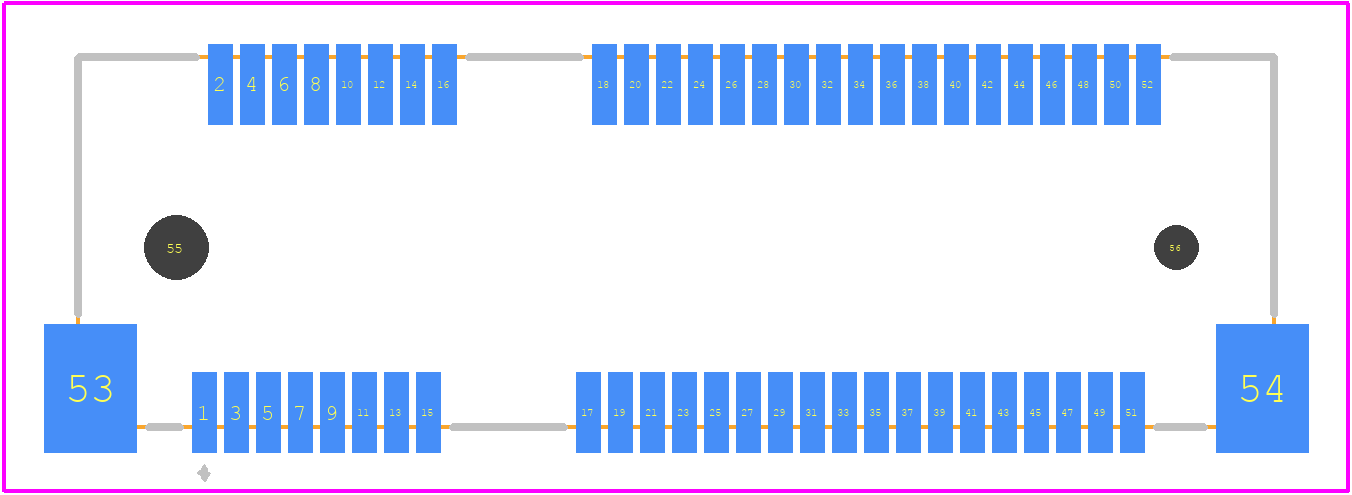

- Footprint Name Other - 2041262-2-3
- Released Date Aug 10, 2024
- Last Modified Date Aug 10, 2024 8:47 AM UTC
- Pinout / Pin List Click Here (Member Only)
2041262-2 Details
-
Manufacturer Part Number:
2041262-2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Connector Type:
CARD EDGE CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Material:
NOT SPECIFIED
2041262-2 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the 2041262-2 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or automotive applications.
-
While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes ranging from AWG 18 to AWG 26, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
-
To ensure reliable connections, use the recommended wire stripping length and insulation diameter, and apply the correct torque value to the screw terminals. Also, avoid over-tightening or under-tightening the screws, as this can cause wire damage or connection issues.
-
The 2041262-2 connector is rated for operating temperatures up to 125°C (257°F). However, it's essential to consider the temperature rating of the wire and other components in the system to ensure reliable operation.
Trust Checks
Community Provided
System Verified
Community Approved
2041262-2 Overview
Use the download button to access the 2041262-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20412,
or try a keyword search, such as Headers and Edge Type Connectors
