2041549-1 - TE Connectivity

Description: Body Features: Sleeve Material Copper Alloy | Sleeve Plating Material Tin-Lead over Nickel | Connector Profile Standard | Frame Style Open | Actuator Material Stainless Steel | Configuration Features: Grid Spacing 1 x 1 MM | Grid Spacing .039 x .039 INCH | Number of Positions 350 | Contact Features: Contact Fabrication Stamped & Formed | Contact Mating Area Plating Material Thickness 50 MICIN | Contact Mating Area Plating Material Gold | IC Socket Type mPGA | Contact Base Material Copper Alloy | PCB Contact

Download 2041549-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2041549-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

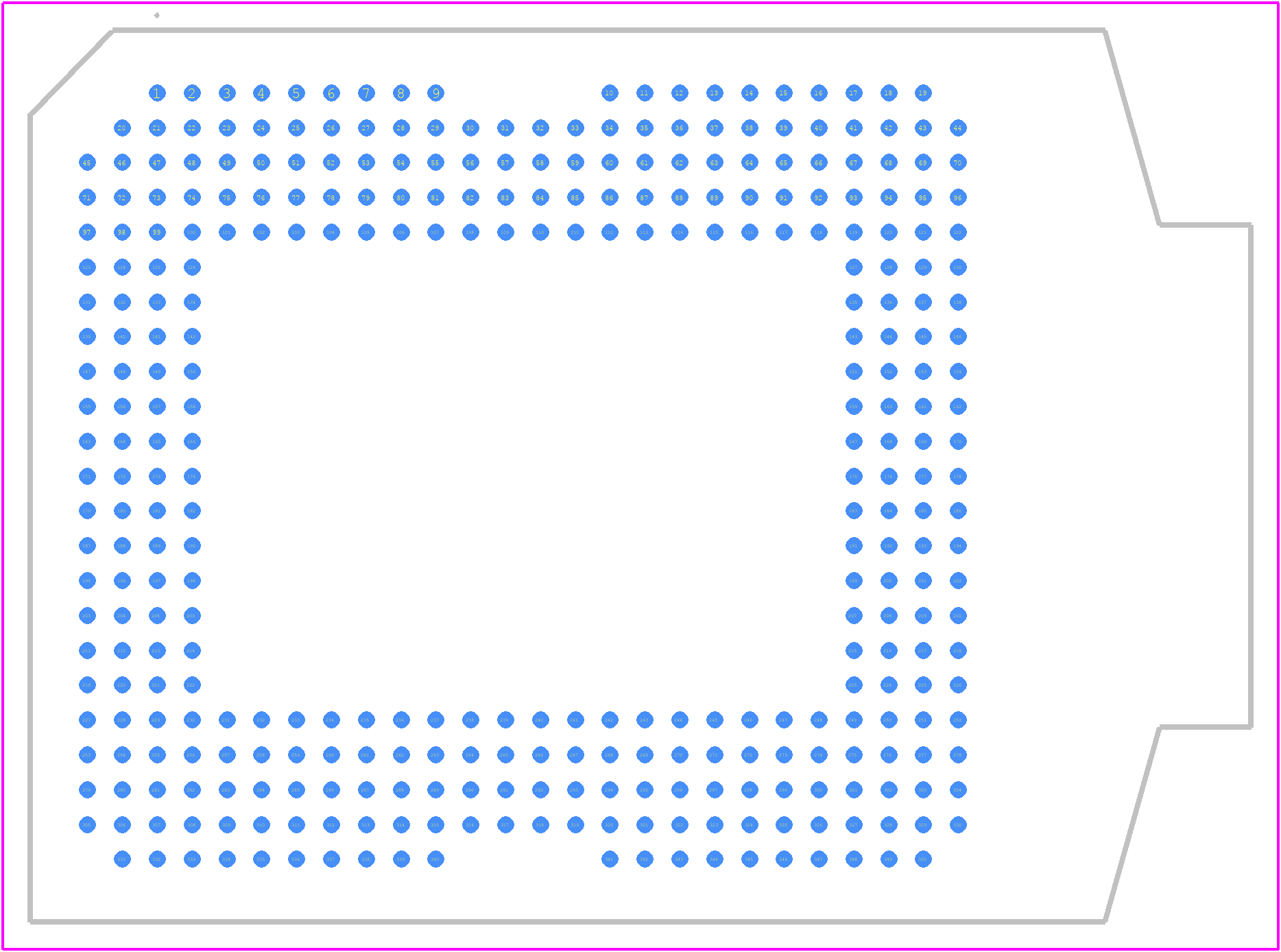

2041549-1 - TE Connectivity PCB footprint - Other - Other - 2041549-1-3
click to zoom
3D Models
2041549-1 - TE Connectivity - 3D model - Other - 2041549-1-3
click to zoom

2041549-1 Details

  • Manufacturer Part Number:

    2041549-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Depth:

    0.157 inch

  • Contact Configuration:

    35X36

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Current Rating:

    0.5 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PGA350

  • Housing Material:

    POLYETHYLENE

  • Mating Contact Pitch:

    0.05 inch

  • Number of Contacts:

    350

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT
