2042088-2 - TE Connectivity

Description: High Speed Backplane Connectors, 96 Position, Mating Alignment, Polarization Mating Alignment Type, 8 Row, 12 Column, Z-PACK Slim UHD

Download 2042088-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2042088-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

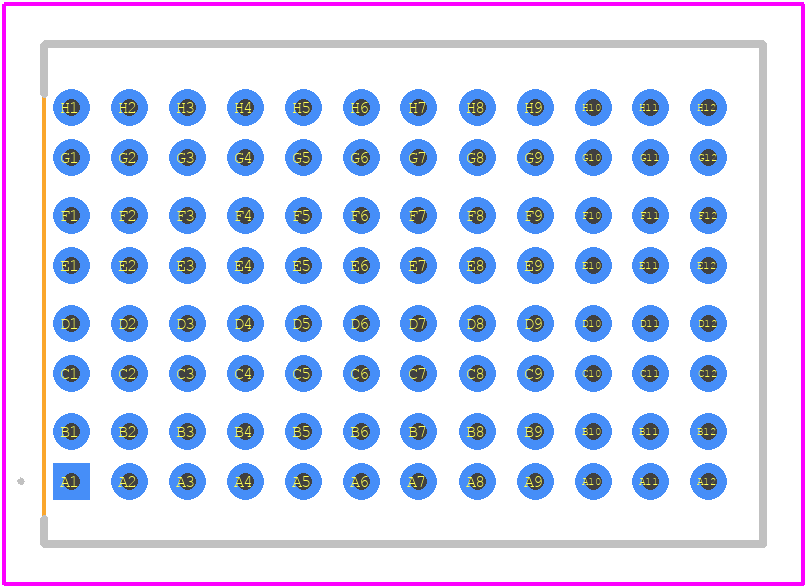

2042088-2 - TE Connectivity PCB footprint - Other - Other - 2042088-2-1
click to zoom
3D Models
2042088-2 - TE Connectivity - 3D model - Other - 2042088-2-1
click to zoom

2042088-2 Details

  • Manufacturer Part Number:

    2042088-2

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Breadth:

    0.493 inch

  • Body Depth:

    0.374 inch

  • Body Length:

    0.681 inch

  • Characteristic Impedance:

    30 Ω

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Durability:

    250 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Row Spacing:

    0.05 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.493 inch

  • Terminal Pitch:

    1.45 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    192

  • UL Flammability Code:

    94V-0

2042088-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2042088-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
  • The 2042088-2 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
  • The 2042088-2 connector is designed to meet IP67 standards, which means it can withstand temporary immersion in water and exposure to certain chemicals. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the connector's suitability for specific harsh environments and applications.
