204763-E - TE Connectivity

Description: PCB Mount Receptacle, Vertical, Board-to-Board, 26 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI SMC

Download 204763-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

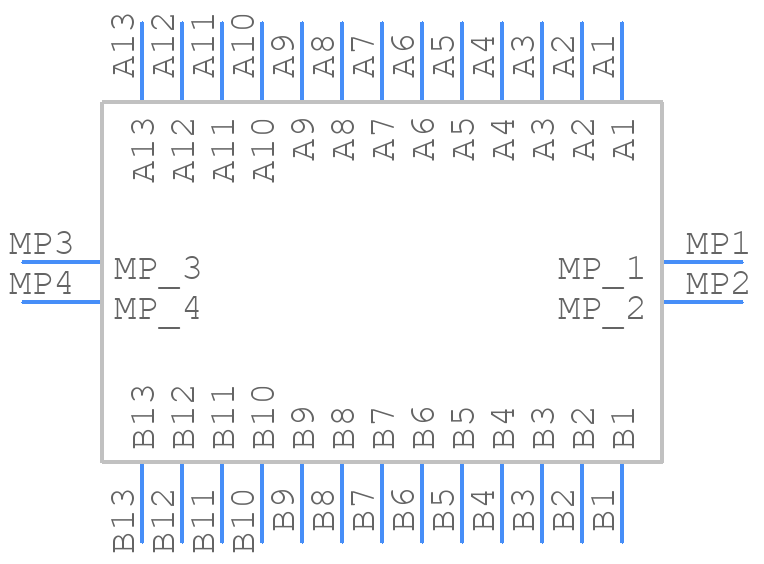

204763-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
204763-E - TE Connectivity PCB footprint - Other - Other - 204763-E-1
click to zoom
3D Models
204763-E - TE Connectivity - 3D model - Other - 204763-E-1
click to zoom

204763-E Details

  • Manufacturer Part Number:

    204763-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    17 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.4

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.283 inch

  • Body Depth:

    0.537 inch

  • Body Length:

    0.85 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.3A

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1.3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0
