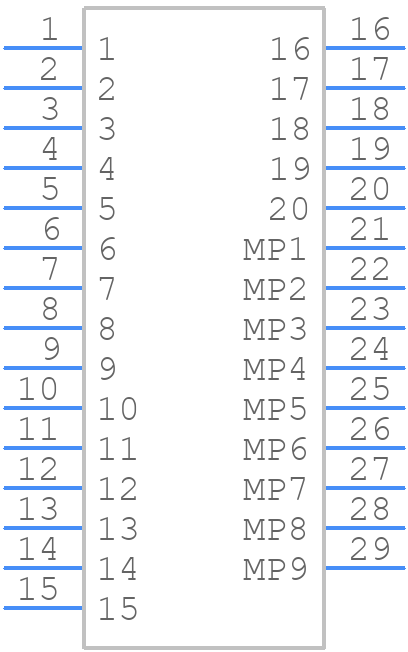

20525-020E-02 - I-Pex

20525-020E-02 Details

• Manufacturer Part Number:

  20525-020E-02

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  I-PEX Co Ltd

• Body Breadth:

  0.039 inch

• Body Depth:

  0.163 inch

• Body Length:

  0.52 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Termination:

  GOLD OVER NICKEL

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  600 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  250VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  9.7 N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e4

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  4u inch

• Rated Current (Signal):

  0.3 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.04 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  2 N
