Part Image

20535-040E-02 - I-Pex

Description: I-PEX Shielded FFC / FPC connector EVAFLEX5-VS (20535) 0.5mm Pitch Horizontal type.

Download 20535-040E-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

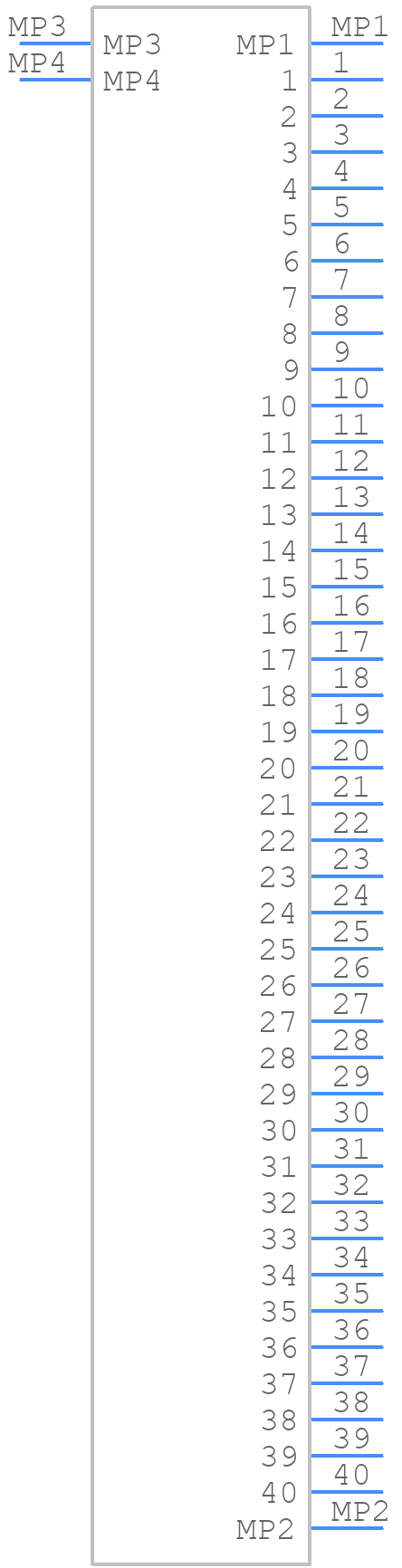

20535-040E-02 - I-Pex - PCB symbol
click to zoom
PCB Footprints
20535-040E-02 - I-Pex PCB footprint - Other - Other - 20535-040E-02-1
click to zoom
3D Models
20535-040E-02 - I-Pex - 3D model - Other - 20535-040E-02-1
click to zoom

20535-040E-02 Details

  • Manufacturer Part Number:

    20535-040E-02

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • Manufacturer:

    I-PEX Co Ltd

  • Additional Feature:

    SHIELDED

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

20535-040E-02 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the receptacle first, followed by the plug. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 20535-040E-02 connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque and mounting guidelines to ensure reliable performance.
  • The maximum cable diameter that can be used with the 20535-040E-02 connector is 1.5 mm. Using a cable with a larger diameter may compromise the connector's performance and reliability.
  • Yes, the 20535-040E-02 connector is designed to be compatible with automated assembly processes. However, it's essential to consult with I-PEX Co Ltd or a qualified assembly partner to ensure proper implementation.
  • The typical lead time for delivery of the 20535-040E-02 connector varies depending on the region, quantity, and availability. It's best to consult with an authorized distributor or I-PEX Co Ltd directly for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

20535-040E-02 Overview

Use the download button to access the 20535-040E-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 20535, or try a keyword search, such as Headers and Edge Type Connectors
