205PPA152KS - ILLINOIS CAPACITOR

Description: 2µF Film Capacitor 600V 1500V (1.5kV) Polypropylene (PP), Metallized Axial

Download 205PPA152KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
205PPA152KS - ILLINOIS CAPACITOR - PCB symbol
click to zoom
PCB Footprints

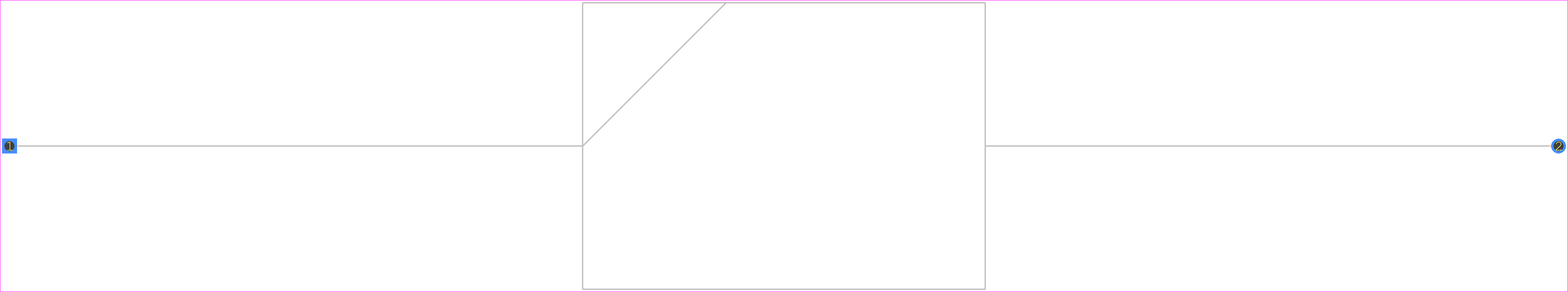

205PPA152KS - ILLINOIS CAPACITOR PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 42x59
click to zoom
3D Models
205PPA152KS - ILLINOIS CAPACITOR - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 42x59
click to zoom

205PPA152KS Details

  • Manufacturer Part Number:

    205PPA152KS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    AXIAL LEADED, LEAD FREE

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.60

  • Manufacturer:

    Illinois Capacitor Inc

  • Capacitance:

    2 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    575 V

  • Rated (DC) Voltage (URdc):

    1500 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

205PPA152KS Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the 205PPA152KS is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress and damage.
  • The 205PPA152KS has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's not recommended for use in extremely humid or wet environments without proper protection, such as conformal coating or potting.
  • The derating curve for the 205PPA152KS is typically provided by the manufacturer upon request. However, as a general guideline, the capacitor's capacitance and voltage rating may decrease by 1-2% per 10°C (18°F) above 85°C (185°F).
  • Yes, the 205PPA152KS is suitable for use in DC-DC converter applications due to its low equivalent series resistance (ESR) and high ripple current rating. However, it's essential to ensure the capacitor is properly sized and selected for the specific application requirements.
