CTS recommends a PCB layout with a solid ground plane, minimal signal trace length, and a 50-ohm impedance-matched transmission line to ensure optimal performance and minimize signal reflections.
CTS recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines to protect the 206-122 from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.
The 206-122 is rated for operation from -40°C to +85°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation within the specified temperature range.
Yes, the 206-122 is designed to withstand vibrations up to 10g peak acceleration. However, it's crucial to ensure proper mounting and mechanical support to prevent damage or malfunction.
CTS recommends following a systematic troubleshooting approach, including visual inspection, signal integrity analysis, and functional testing. Consult the datasheet and application notes for specific guidance on troubleshooting common issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
206-122 Overview

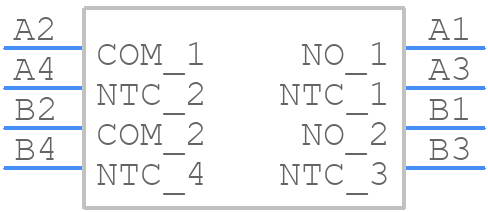

Use the download button to access the 206-122 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 206-1,
or try a keyword search, such as DIP Switches
