CTS recommends a PCB layout with a solid ground plane, minimal signal trace length, and a 0.1uF decoupling capacitor between VCC and GND to ensure optimal performance and reduce noise.
CTS recommends using a TVS diode or a dedicated ESD protection device, such as the CTS 205-123, to protect the 206-123 from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.
While the datasheet specifies an operating temperature range of -40°C to 85°C, CTS recommends derating the device's performance at temperatures above 70°C to ensure reliable operation.
Yes, the 206-123 is designed to withstand vibrations up to 10g peak acceleration. However, CTS recommends following proper mounting and soldering procedures to ensure the device remains securely attached to the PCB.
CTS recommends using a logic analyzer or oscilloscope to monitor the device's input and output signals. Check for proper power supply, signal integrity, and ensure that the device is properly configured and programmed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
206-123 Overview

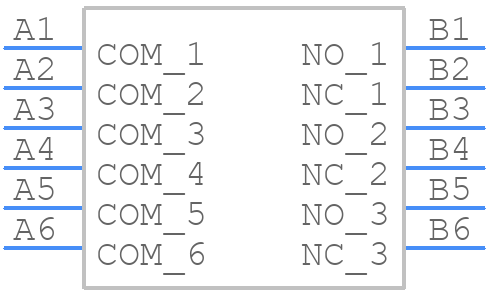

Use the download button to access the 206-123 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 206-1,
or try a keyword search, such as DIP Switches
